Packing list:

Capture card : 1

USB3.0 cable(50cm): 1 HDMI

cable(100cm):1

Audio Cable(100cm): 1

Manual book: 1

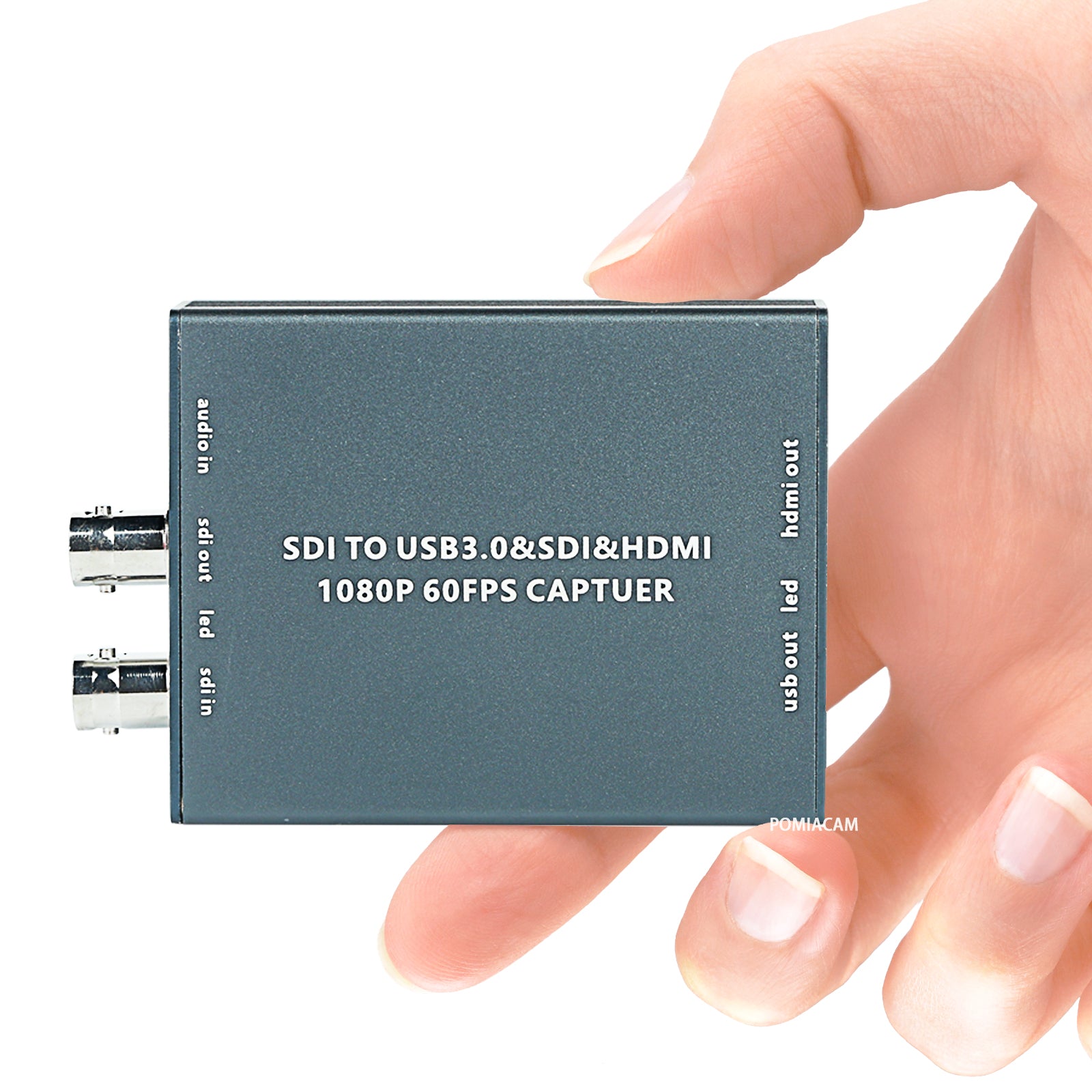

SDI to USB3.0 capture card 1080P 60 frames YUY2 format synchronous SDI HDMI loop out

Parameters:

Input SDI signal,BNC female
Output USB3.0,BNC female,HDMI
Audio port 3.5mm , 3 level
Video out resolution 1920*1080,1600*1200,1360*768,
1280*1024 ,1280*960 ,1280*720 ,
1024*768 ,800*600 ,720*480 ,
720*576,640*480
Video format YUY2 MJPEG
Frame rate 60 50 40 30 25 15 10 frames
AV capture protocal Standard UVC/UAC
Driver Free, plug and play
Operation system Windows/Linux /Android/MAC
Video capture software OBS Potplayer(windows)
Consumption ＜3Wat
Working Temp. -20℃-65℃
Working Hum. 5%-90%
Dimension 94mm*64mm*24mm
Weight Device:110g
Packing:240g

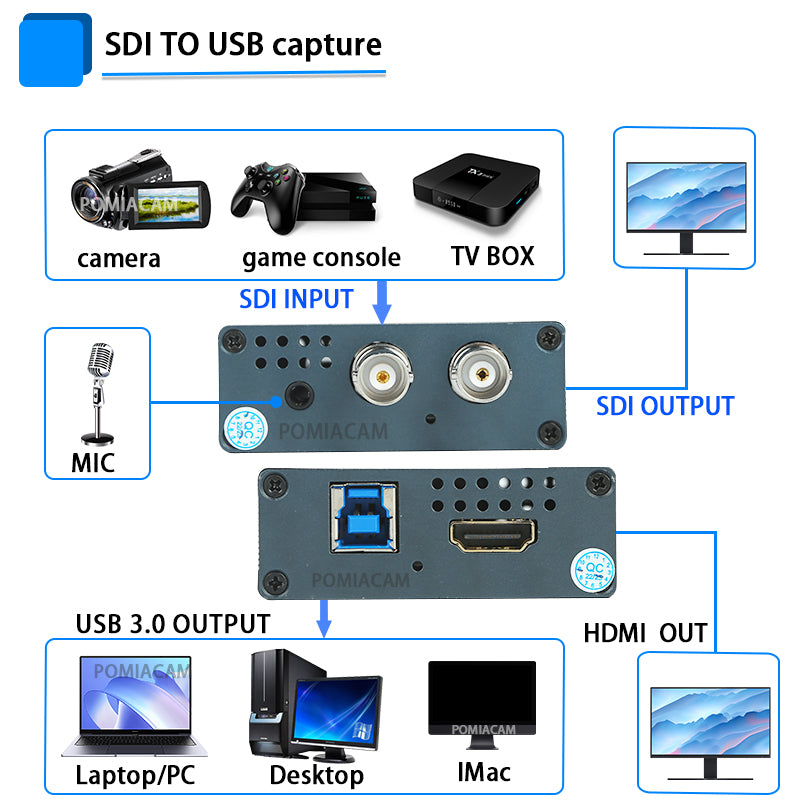

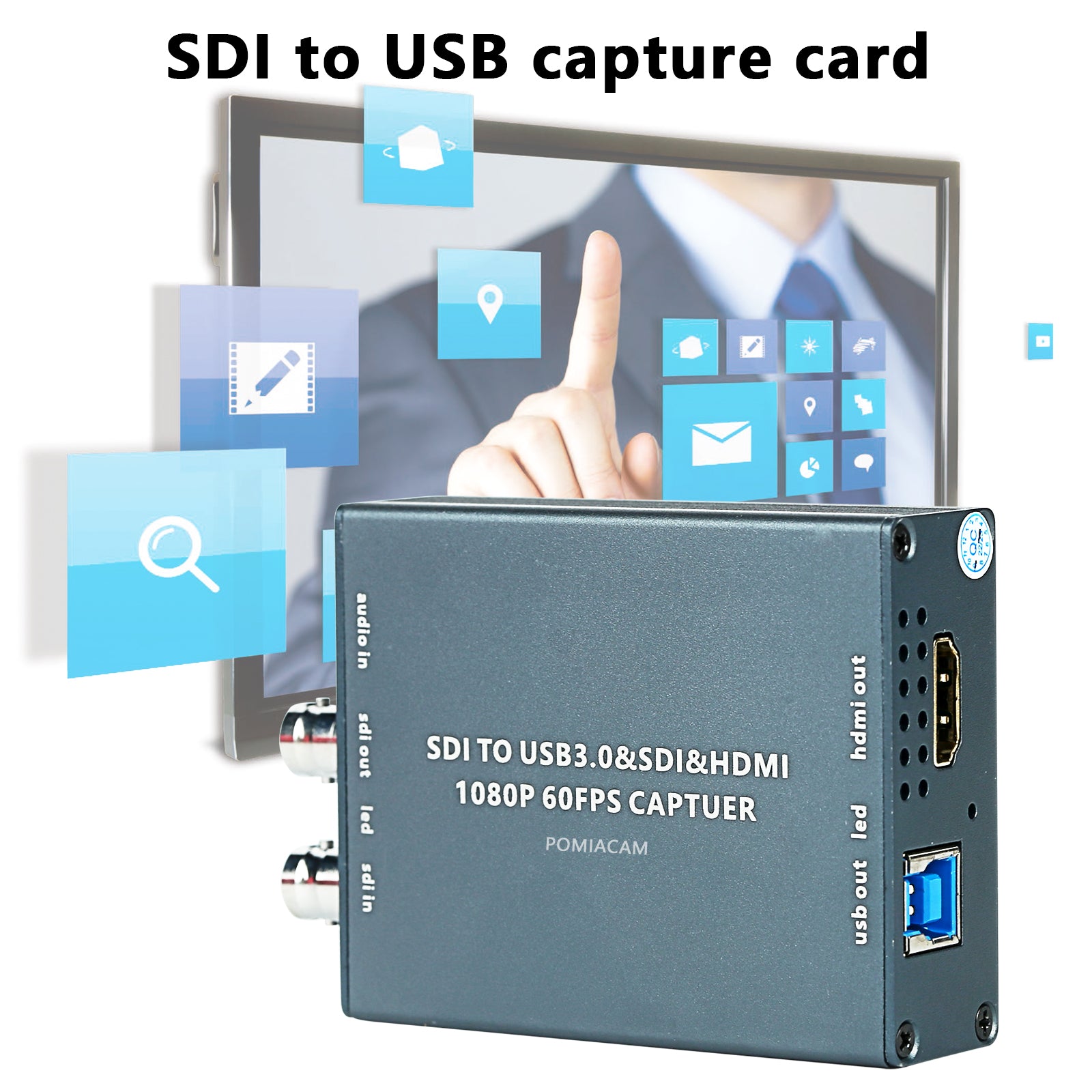

How to use:

1.Connect input video to "sdi in" port.

2.Connect to PC by "USB output" port, or connect to an OTG

connector to cell phone.

3.If there has a audio input, connect to "audio in" port.And it

output HDMI and SDI signal to other device at mean time.

4.When you using a software to capture video on PC, choose

"AFN Cap Video" and activate it. Just same as USB camera.

5. LED status

Input LED: no signal(flashing) got signal (light on)

Output LED: Not working(off) working (light on)
