POMIACAM

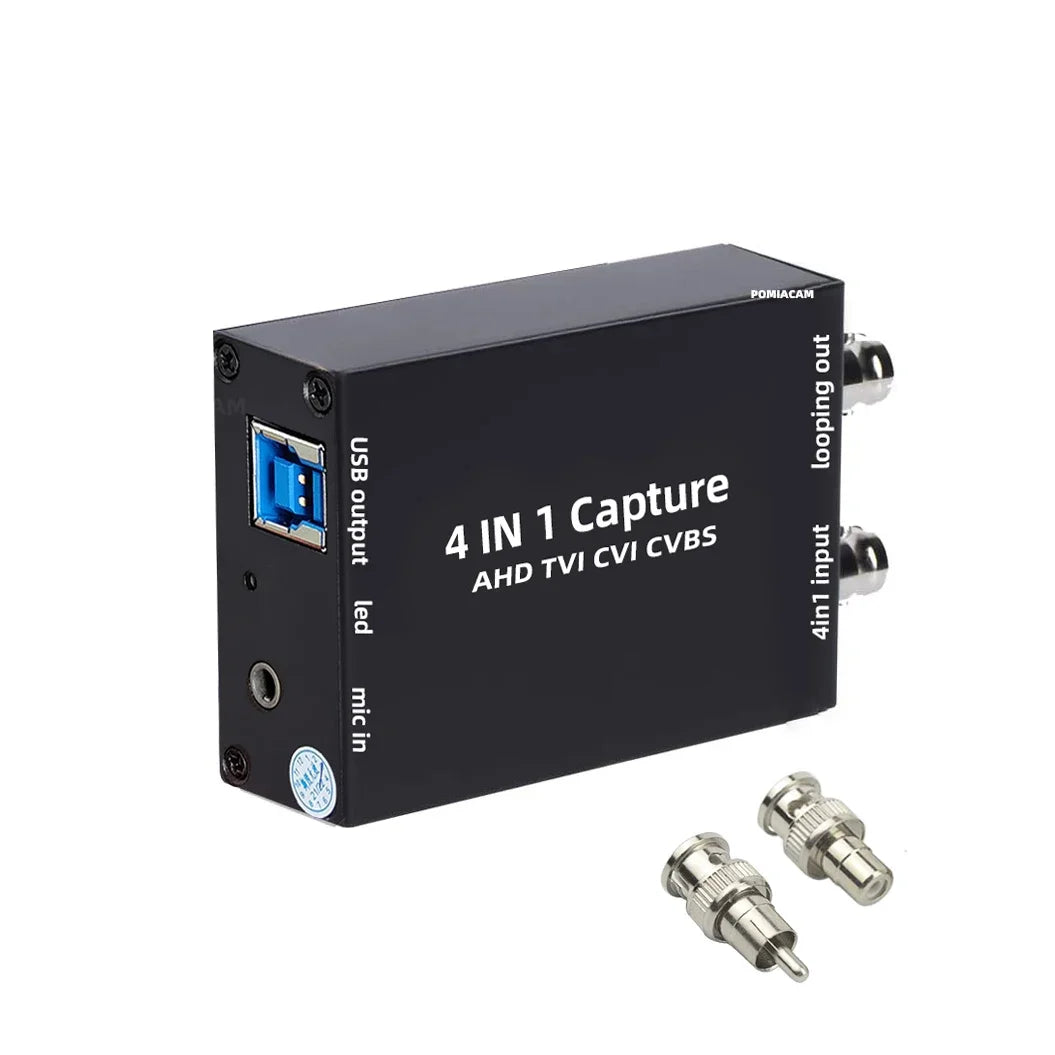

AFN-4in1 Video Capture card 4 in 1 AHD CVBS CVI TVI to USB 3.0 Video Converter 1080P 60FPS For OBS /PotPlayer supports lossless loop out
AFN-4in1 Video Capture card 4 in 1 AHD CVBS CVI TVI to USB 3.0 Video Converter 1080P 60FPS For OBS /PotPlayer supports lossless loop out
Regular price
€228,00 EUR
Regular price
€325,71 EUR
Sale price
€228,00 EUR
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Care Instructions
Care Instructions
AHD TVI CVI CVBS to USB Video Capture Card USB 3.0 for video Recorder capture
Factory direct sales,Support Wholesale, support OEM
OEM: You can customize your logo the startup screen. Wholesale more than 50 pieces customized
If you need customization, please contact me.
Whatsapp: +86 137 9825 0203
Email: sales09@autopvision.com
Factory direct sales,Support Wholesale, support OEM
OEM: You can customize your logo the startup screen. Wholesale more than 50 pieces customized
If you need customization, please contact me.
Whatsapp: +86 137 9825 0203
Email: sales09@autopvision.com
The video capture can capture both video and audio, sending audio and video signals to computers and push tp online live broadcast platforms. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
Please note before purchasing that this device only supports AHD TVI CVI CVBS and cannot support SDI signals.

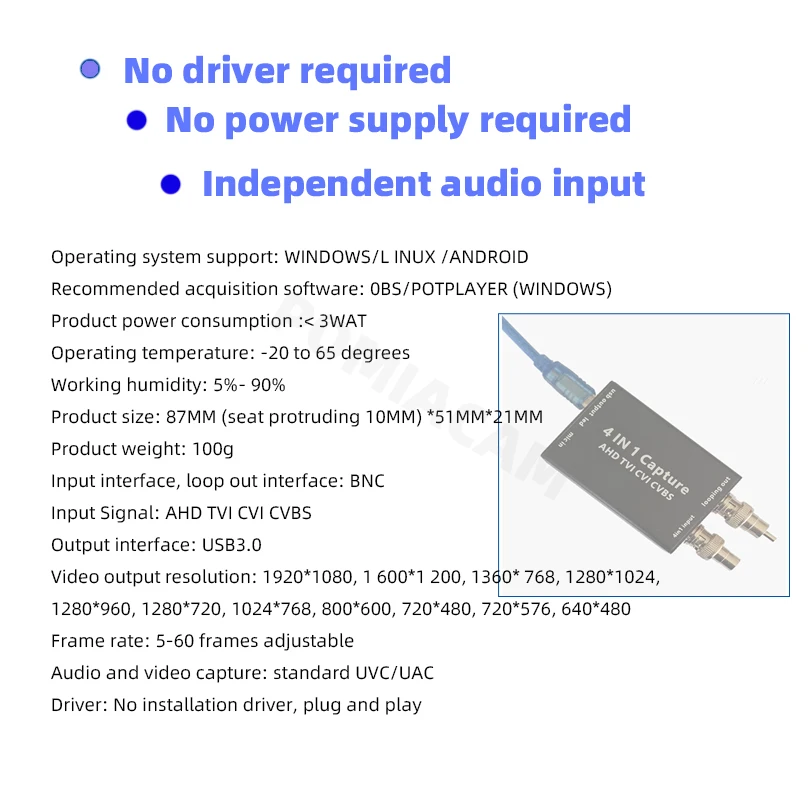

Features:

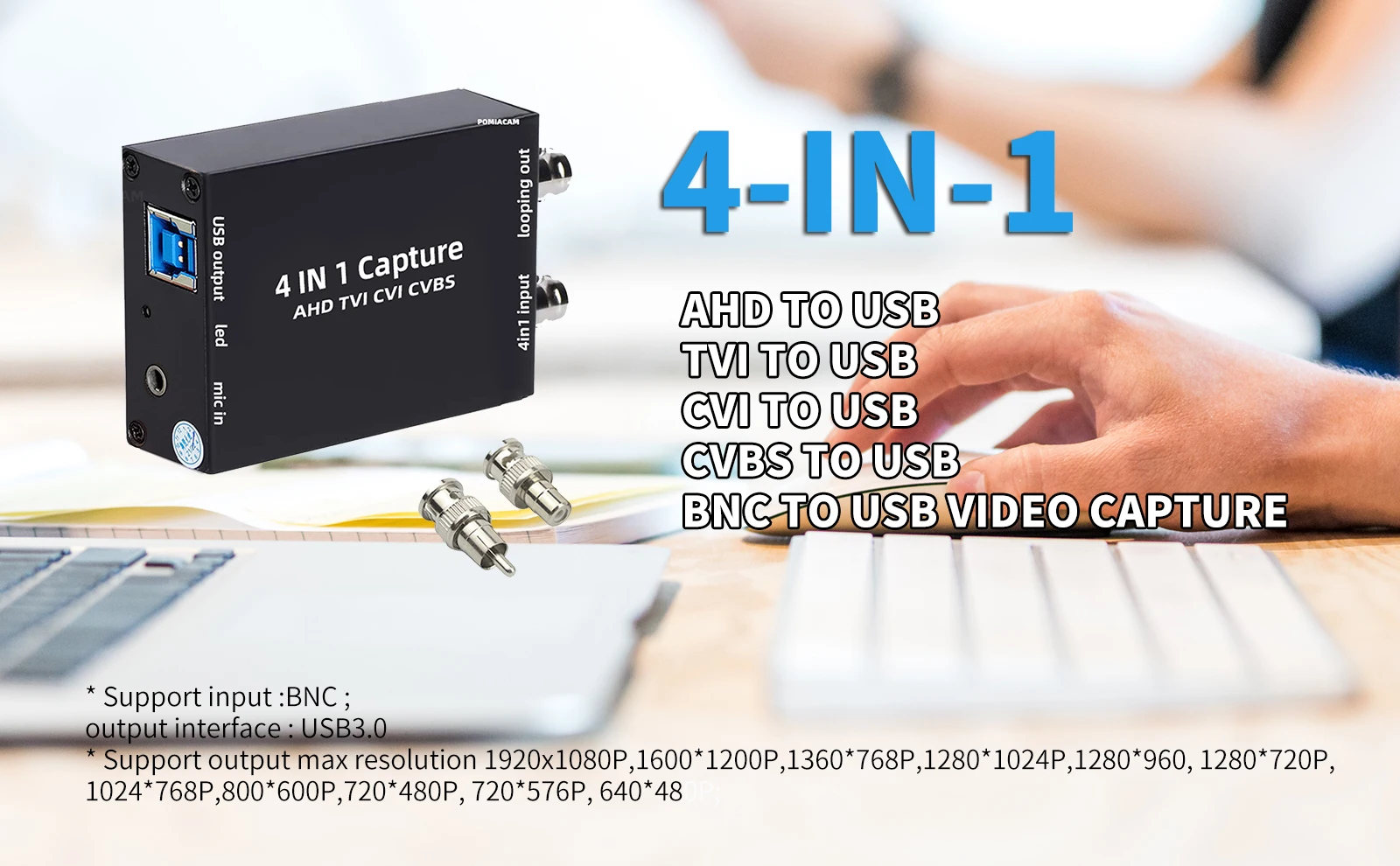

* Support input :BNC ;
output interface : USB3.0
* Support output max resolution 1920x1080P,1600*1200P,1360*768P,1280*1024P,1280*960, 1280*720P, 1024*768P,800*600P,720*480P, 720*576P, 640*480P;
* Support Frame rate;5-60FPS select
* Support audio and video capture : standard UVC/UAC,
* Drive : NO need to install the driver , plug and play ;
* Support Windows and Linux, android operating system ;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Without external power supply, compact and portable.
' allowed for capture, commonly used acquisition software : OBS/potplayer(windows )
Product power consumption: 3Wat
Size : 87mm+10mm*51mm*21mm
Weight: 100g
Package include:
1 x BNC to usb video capture
PRODUCT INTRODUCTION:
4 in 1 CAPTURE is an audio and video capture device that supports AHD, CVBS, TVI, CVI signal input, and USB interface output to the computer. It is a cost-effective audio and video capture card that complies with UVC/UAC specifications. The transmission interface is USB3. . 0, this machine can be compatible with WINDOWS system, LINUX system, Android ANDROID, it is a plug and play High-definition video capture tool with USB drive free.
FUNCTIONAL:
4 in 1 CAPTURE converts AHD, CVBS, TVI, CVI and other camera signals into USB signals, and completes the collection and recording of camera signals and videos through computers, notebooks, mobile phones and other devices. At the same time, it supports lossless loop out and supports microphone synchronous audio input. The products are commonly used in security monitoring, medical equipment video capture, corporate video conferencing, education, phishing detection and other fields. Compatible with OBS, POTPLAYER, AMCAP, VLC and other acquisition software.
INSTRUCTIONS FOR USE. .
1. Connect the signal source to the 4IN1 INPUT interface of the capture card, if you need the loop-out function, you can connect to the LOOPING OUT interface

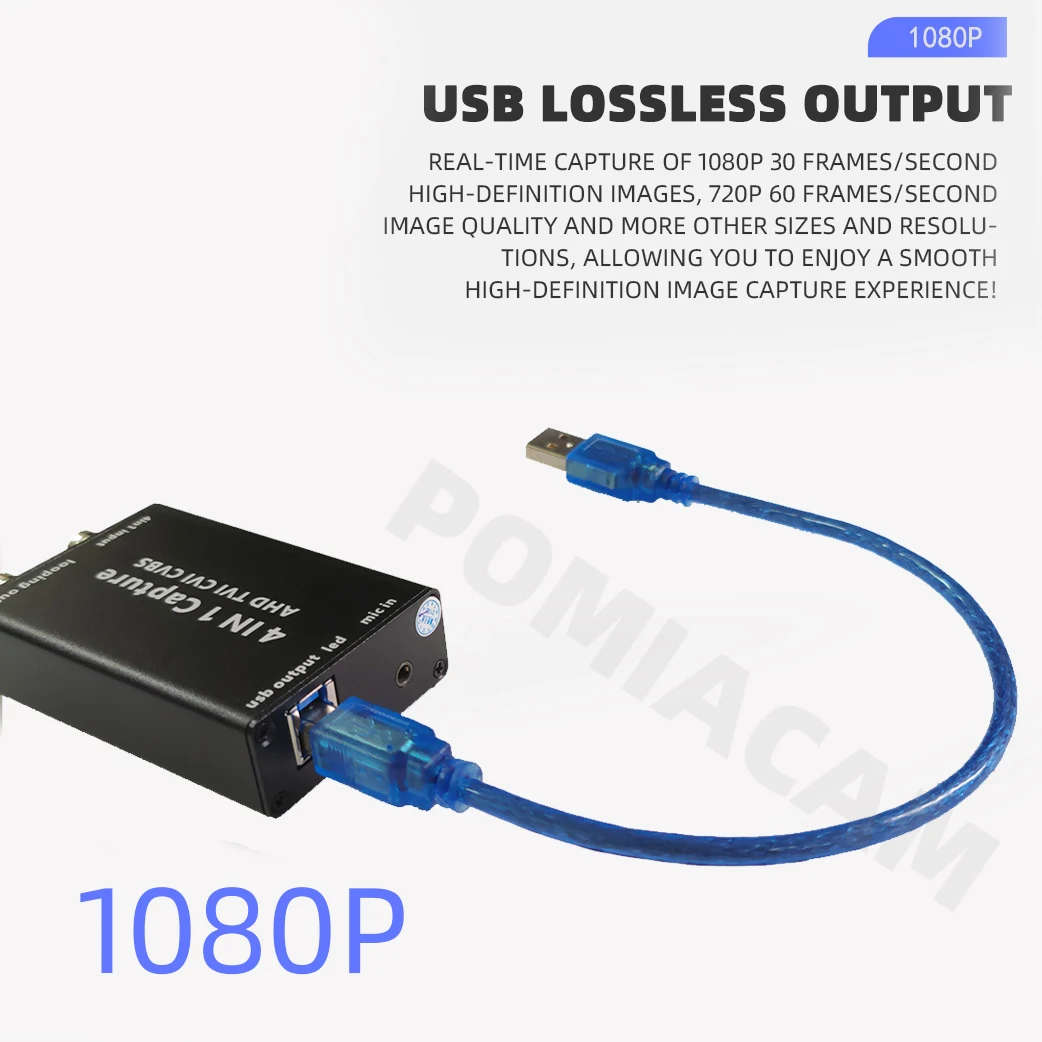

2. The USB OUTPUT of the capture card is connected to the computer through the USB cable, or the OTG head is connected to the mobile phone (drive-free)
3. For audio input, connect the audio signal to the MICIN interface
4. Open the acquisition software on the acquisition computer, select the device AFN_ CAP VIDEO and activate it. At this time, the red LED light flashes, indicating that the signal acquisition is successful
Please note before purchasing that this device only supports AHD TVI CVI CVBS and cannot support SDI signals.
Features:
* Support input :BNC ;
output interface : USB3.0
* Support output max resolution 1920x1080P,1600*1200P,1360*768P,1280*1024P,1280*960, 1280*720P, 1024*768P,800*600P,720*480P, 720*576P, 640*480P;
* Support Frame rate;5-60FPS select
* Support audio and video capture : standard UVC/UAC,
* Drive : NO need to install the driver , plug and play ;
* Support Windows and Linux, android operating system ;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Without external power supply, compact and portable.
' allowed for capture, commonly used acquisition software : OBS/potplayer(windows )
Product power consumption: 3Wat
Size : 87mm+10mm*51mm*21mm
Weight: 100g
Package include:
1 x BNC to usb video capture
PRODUCT INTRODUCTION:
4 in 1 CAPTURE is an audio and video capture device that supports AHD, CVBS, TVI, CVI signal input, and USB interface output to the computer. It is a cost-effective audio and video capture card that complies with UVC/UAC specifications. The transmission interface is USB3. . 0, this machine can be compatible with WINDOWS system, LINUX system, Android ANDROID, it is a plug and play High-definition video capture tool with USB drive free.
FUNCTIONAL:
4 in 1 CAPTURE converts AHD, CVBS, TVI, CVI and other camera signals into USB signals, and completes the collection and recording of camera signals and videos through computers, notebooks, mobile phones and other devices. At the same time, it supports lossless loop out and supports microphone synchronous audio input. The products are commonly used in security monitoring, medical equipment video capture, corporate video conferencing, education, phishing detection and other fields. Compatible with OBS, POTPLAYER, AMCAP, VLC and other acquisition software.
INSTRUCTIONS FOR USE. .
1. Connect the signal source to the 4IN1 INPUT interface of the capture card, if you need the loop-out function, you can connect to the LOOPING OUT interface
2. The USB OUTPUT of the capture card is connected to the computer through the USB cable, or the OTG head is connected to the mobile phone (drive-free)
3. For audio input, connect the audio signal to the MICIN interface
4. Open the acquisition software on the acquisition computer, select the device AFN_ CAP VIDEO and activate it. At this time, the red LED light flashes, indicating that the signal acquisition is successful
