AUTOPVISION

VGA To USB Capture 1080P Audio and Video Capture with Video Capture Card Support UVC/UAC Standard --VGA LOOP Output

VGA To USB Capture 1080P Audio and Video Capture with Video Capture Card Support UVC/UAC Standard --VGA LOOP Output

Regular price €55,00 EUR
Regular price €0,00 EUR Sale price €55,00 EUR
Sale Sold out
Shipping calculated at checkout.
Color

Care Instructions



VGA to USB capture 1080P audio and video capture with Video Capture Card support UVC/UAC standard --VGA LOOP output


About VGA Capture:

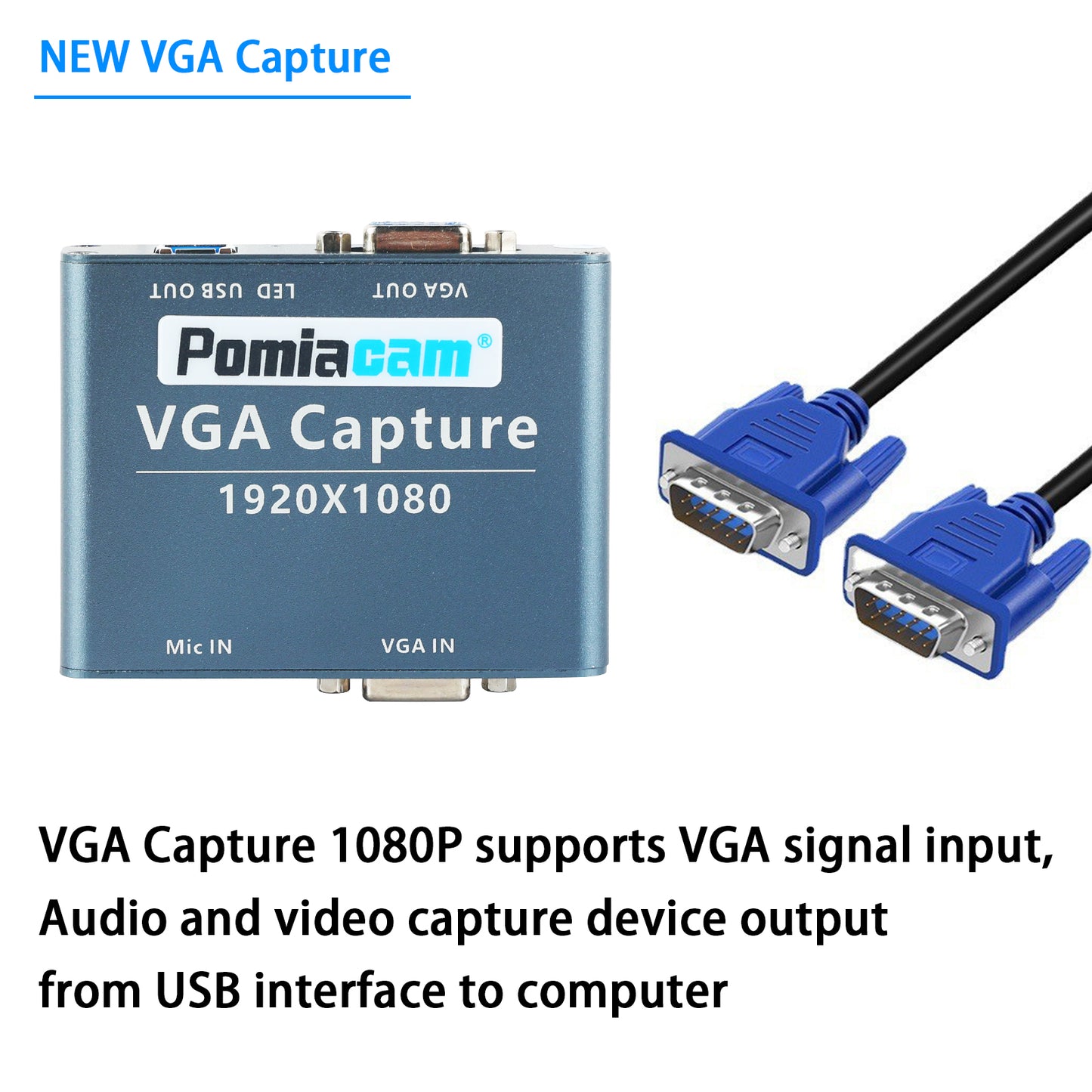

VGA to USB Capture 1080P is an audio and video capture device which support VGA input and USB output. It support UVC/UAC standard, transport port is USB 2.0(loop out version is USB 3.0),it compatible with Android, Windows and Linux system. It is a driver free HD capture device also support Plug and Play.

Features:
VGA to USB Capture convert VGA signal to USB signal from PC,  PSP,industrial camera microscopes,medical devices, it capture the VGA signal and recording by PC, notebook,  cell phone. The device support audio input too. This capture card is always use in medical, video meeting, live stream for game, education. It compatible software such as OBS, POTPLAYER,AMCAP,VLC and so on,  and also support USB camera in Android system.

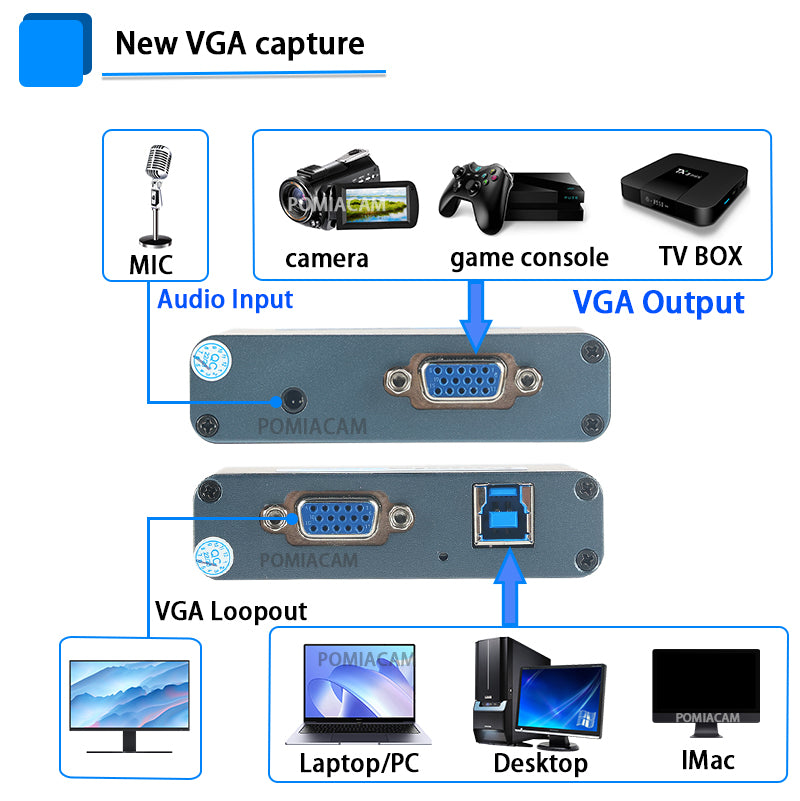

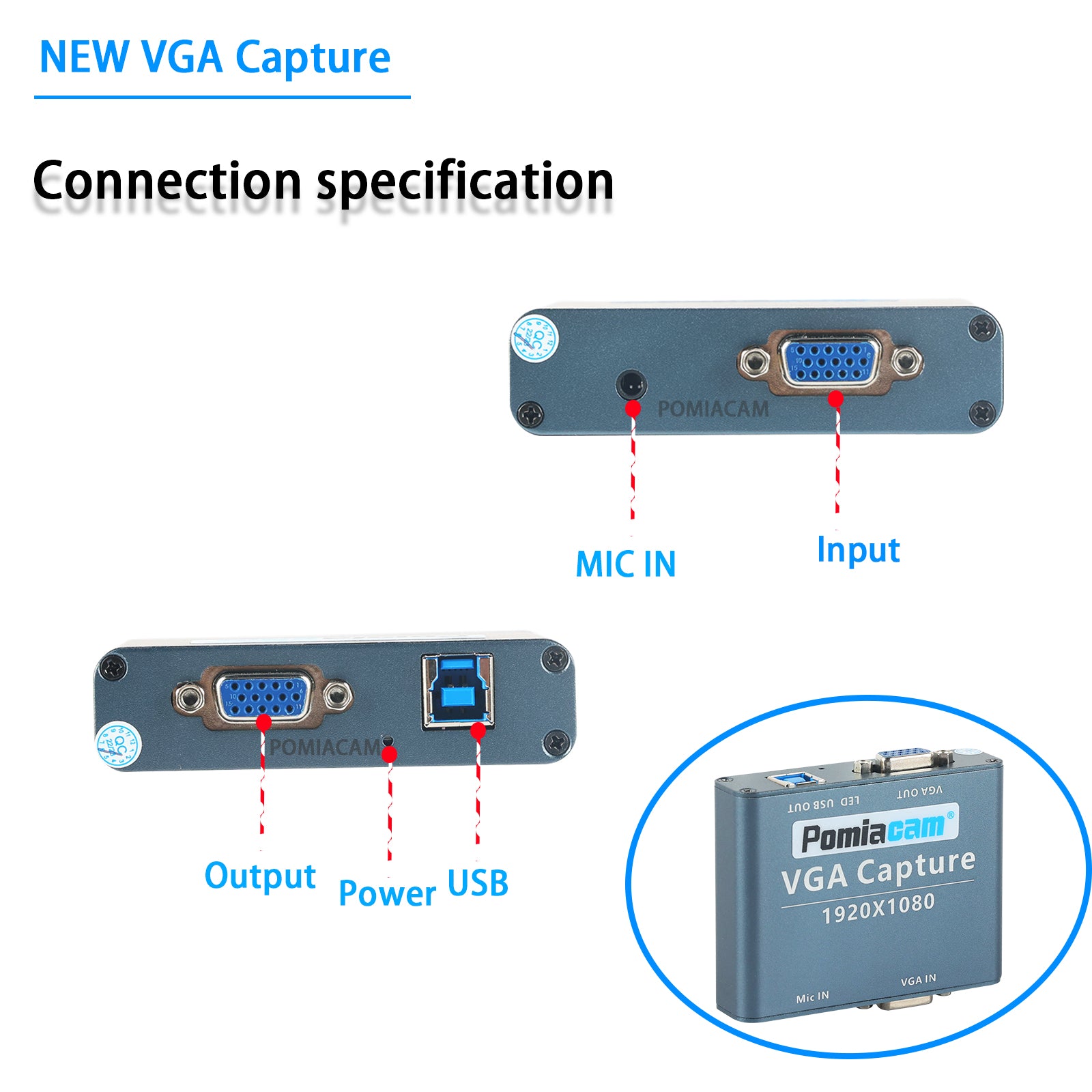

How to use:
1,Connect VGA signal source to VGA INPUT port. (Resolution only same as in spec. sheet)
2,Connect USB OUTPUT port to computer USB via USB cable.(Driver Free)
3,A separate microphone connect to MIC IN if necessary.

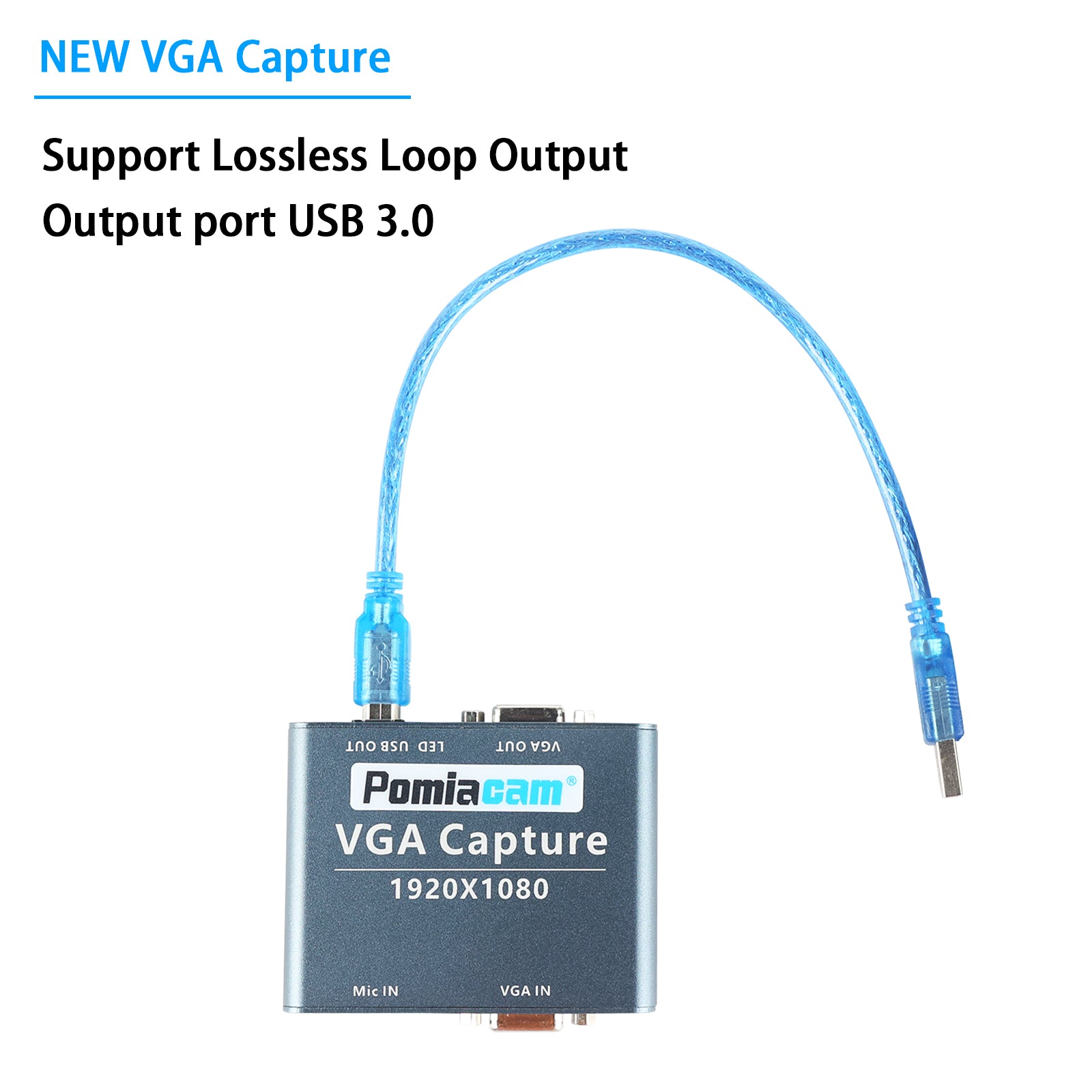

4,Loop out version support VGA out connect to monitor.
5,Running capture software on computer, select  device "ANF_Cap Video" and activate it. Red LED light flashing means signal captured.
Sweet tips:
Because of mini size designed, it is normal if the
device is hot in working mode.

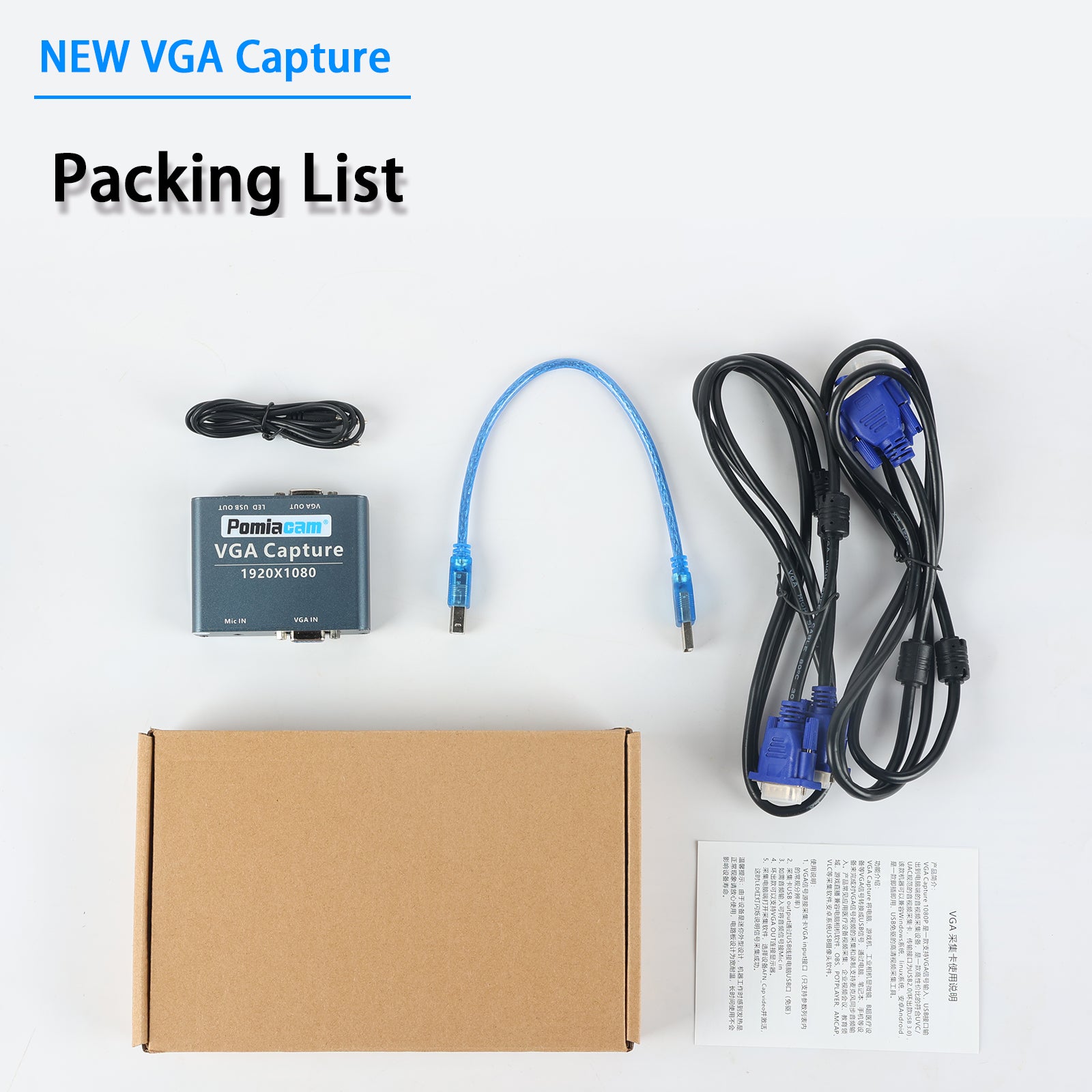

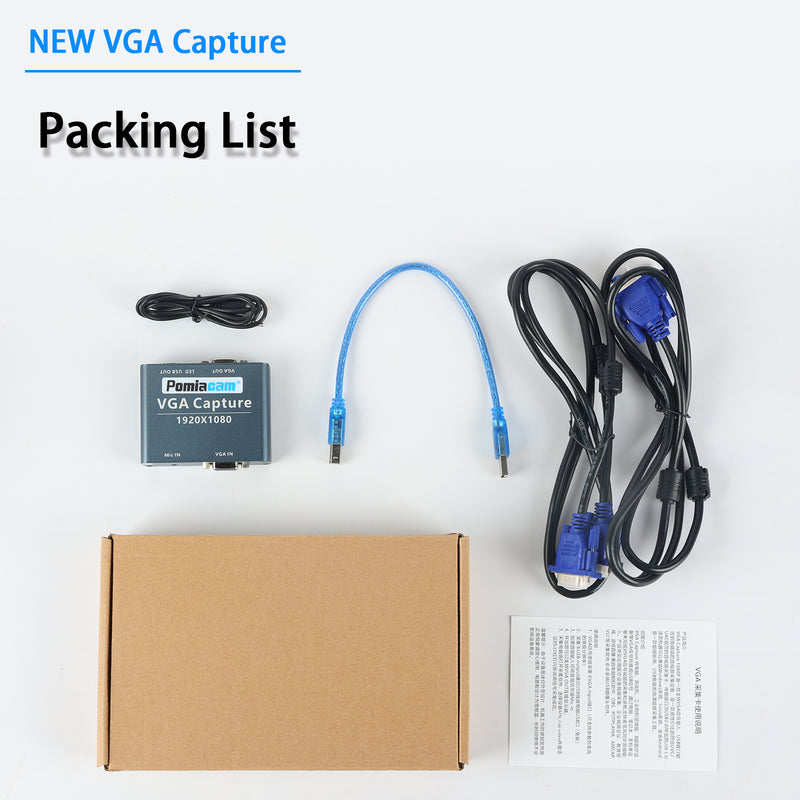

Accessories:
Standard version:
USB cable:1,Manual:1,VGA cable:1
Loop out version:
Audio cable:1,USB cable:1,Manual:1,VGA cable:2
-20~65℃
Input VGA,3.5mm connector
Output
Standard USB2.0,loop out
version USB 3.0,VGA
Video output resolution
1920*1080 , 1600*1200 ,
1360*768 , 1280*1024 ,
1280*960 , 1280*720 ,
1024*768 , 800*600 ,
720*480,720*576,640*480
Frame 5-60 frame adjustable
Standard UVC/UAC
Driver Free
Operation system Windows/Linux /Android/MAC
Capture software
OBS/Potplayer(Windows)
/USB camera(Android)
Consumption <1.5Wat
Working Temp.
Workng Hum. 5%-90%
Size 82mm*63mm*21mm
Weight 100
