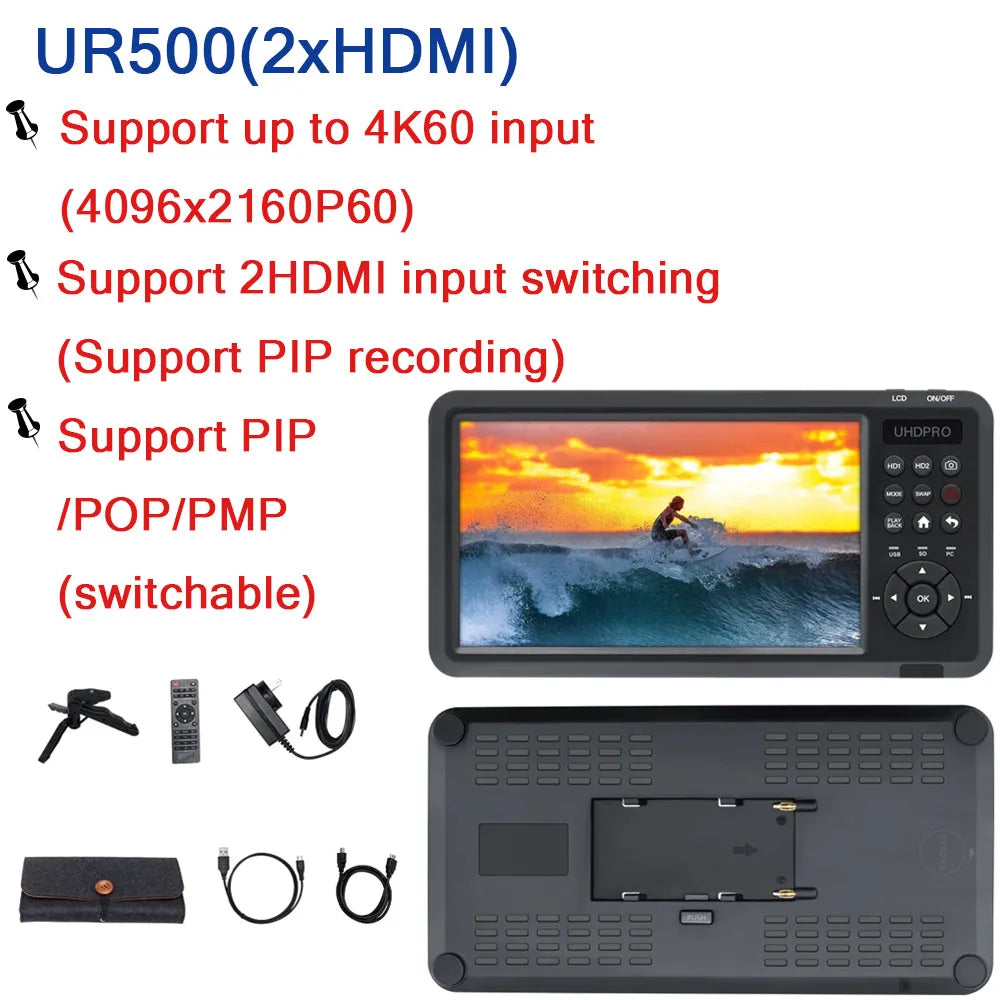

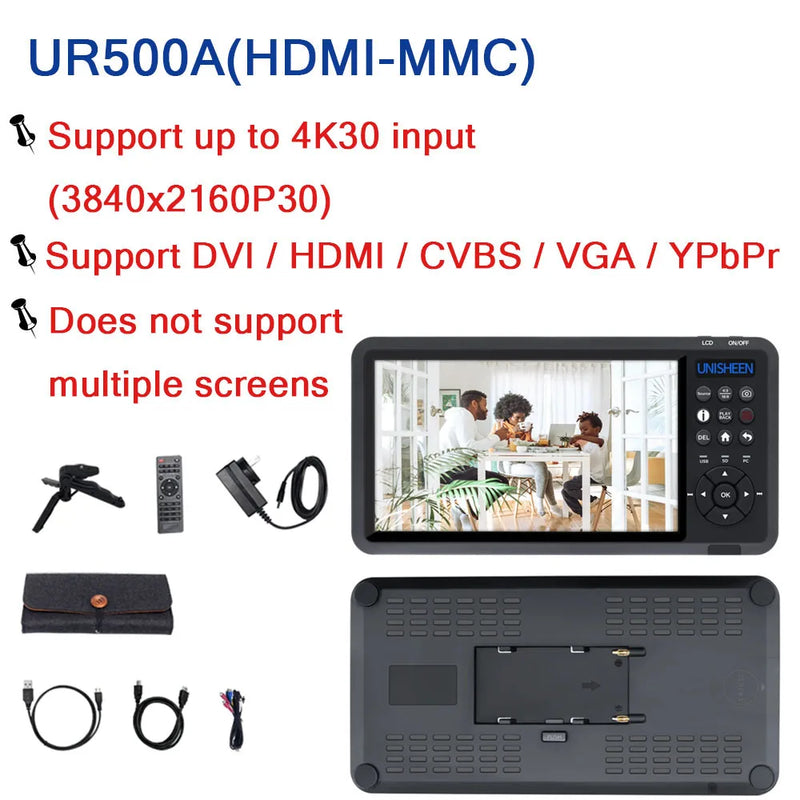

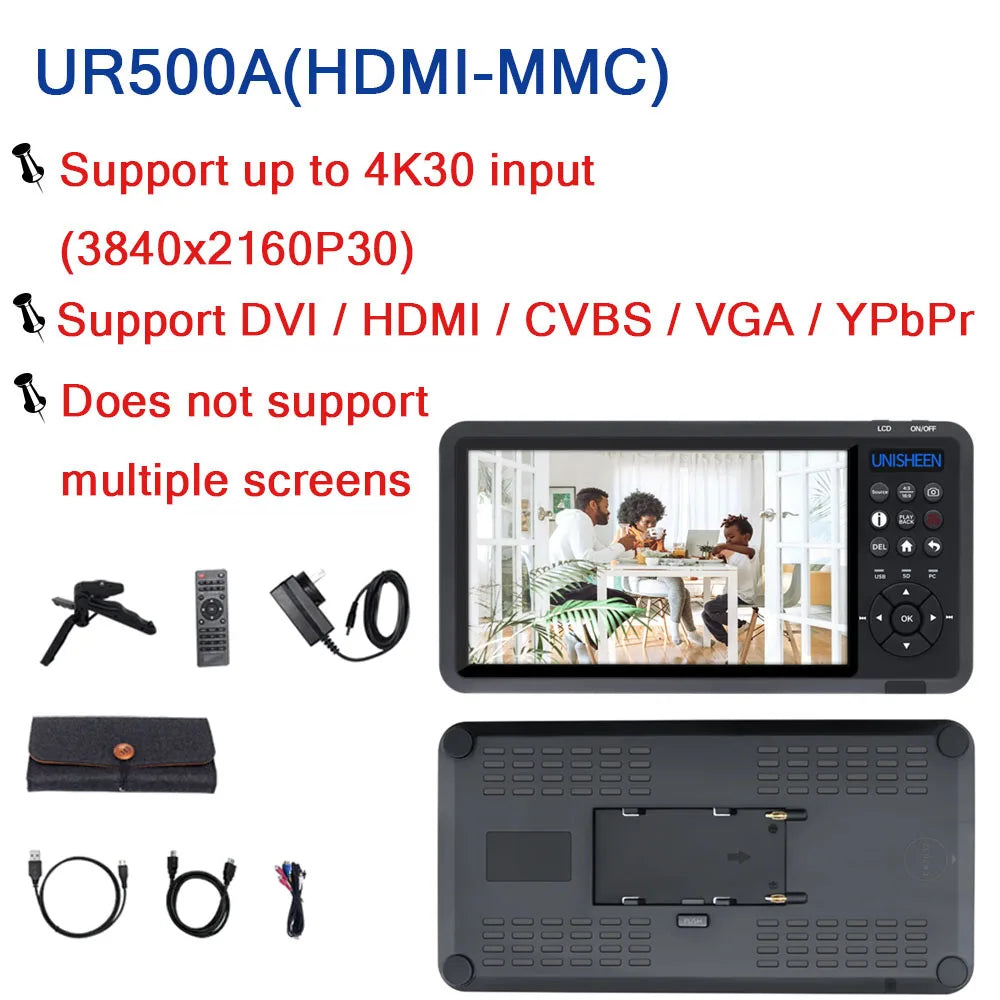

UR500A Video Record StandAlone Monitor Endoscop 2 Channel 4K PIP POP RCA HDMI VGA YPbPr Analog Screen Capture Box
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Note: Battery not included (shipping restrictions apply).
|
Specification |
|
|

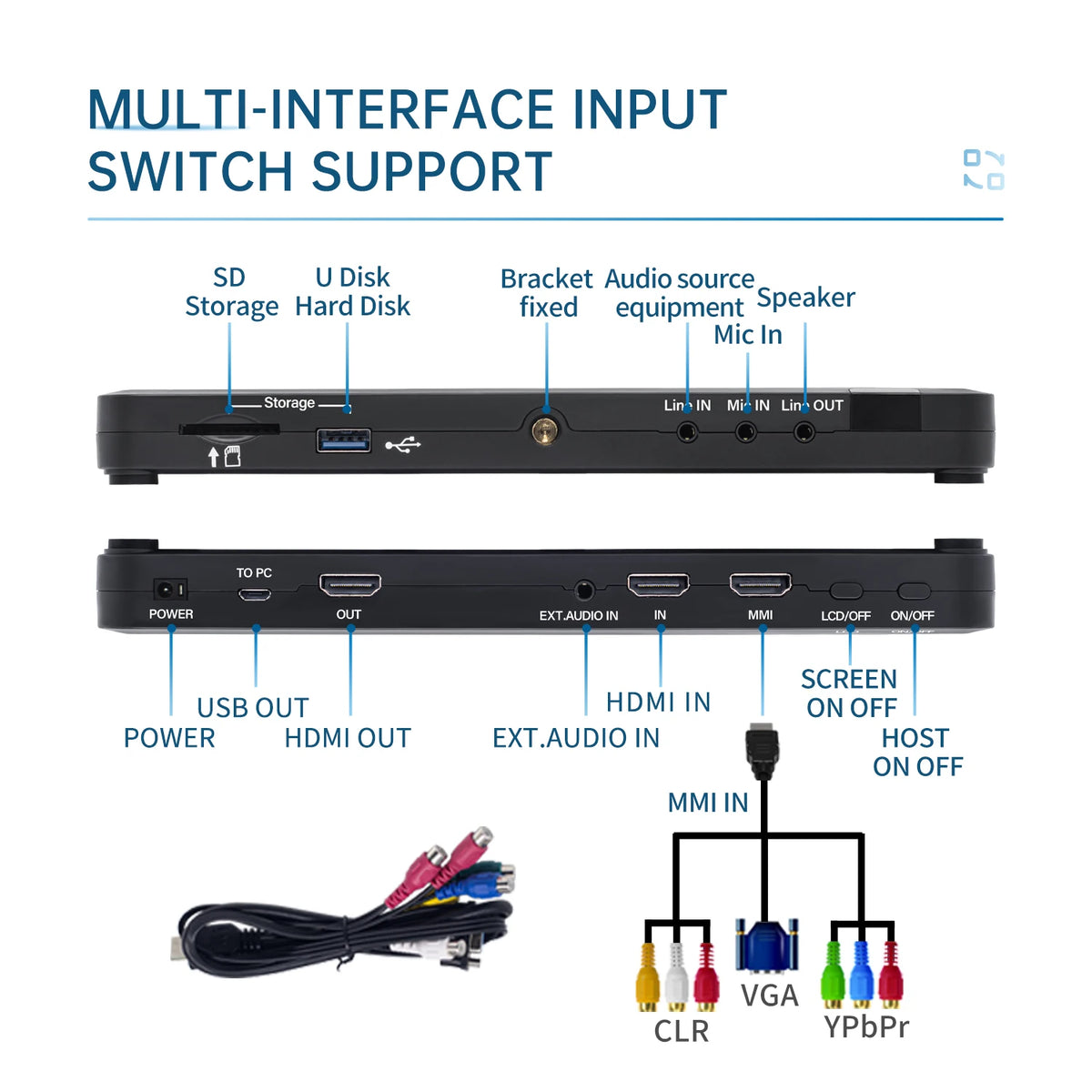

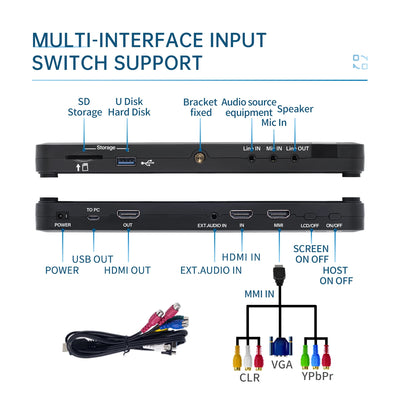

HD1/HD2 Video Input(Switchable) |
2x HDMI( 1.4)4096x2160p60,1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i |
|
Loop Out |
1xHDMI |
|
Audio |
HDMI Embeded/External Audio/Line In/Mic In |
|
Display Screen |
7 Inch |
|

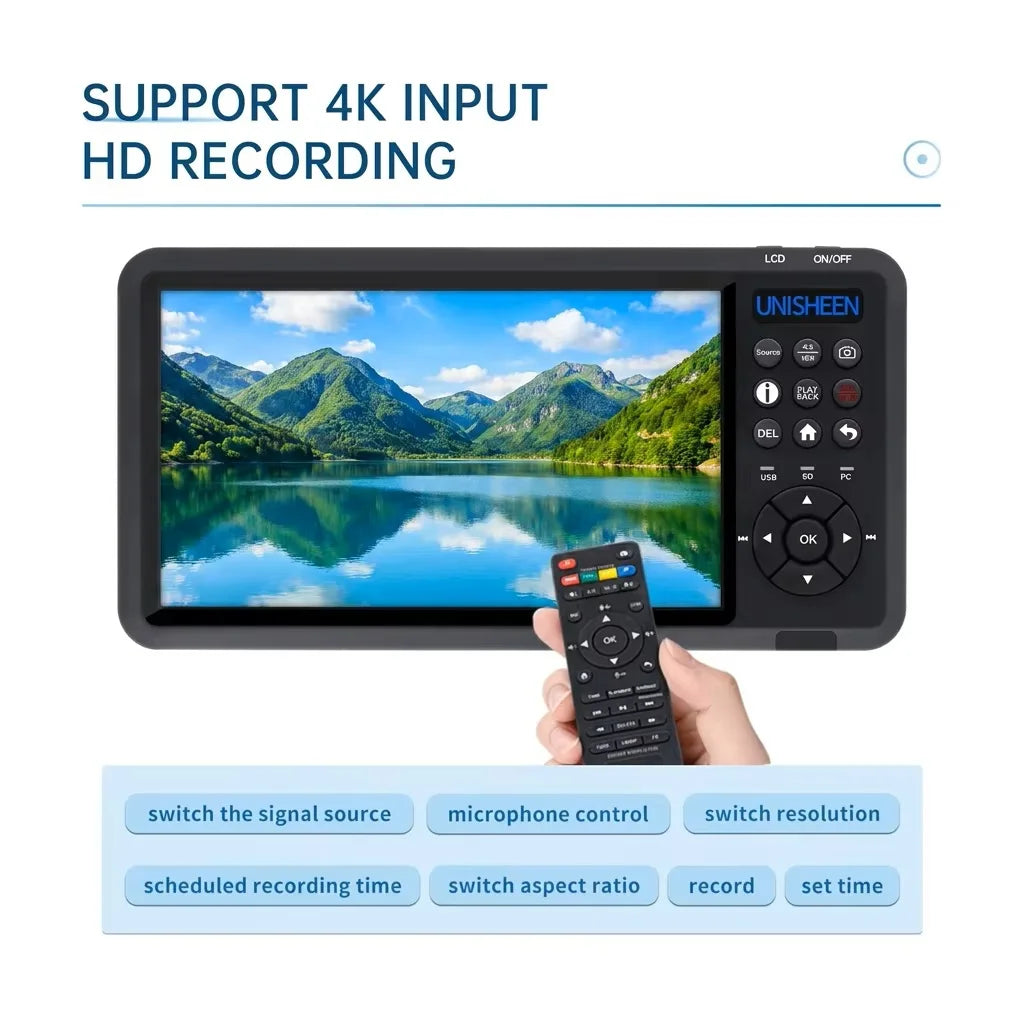

Remote Control |
Yes |
|
Screeshot in Recording |
Yes |
|
Picture Mode |
PIP/POP/PMP |
|
Playback |
Yes |
|
Alone Mode |
|
|
Record Resolution |
1920x1080/1280x720/1280x1024/1024x768 |
|
Storage Device |
Flash USB Drive(up to 512G),Harddisk(up to 8T),SD(up to 512G) |
|
Storage File System |
FAT32/exFAT/NTFS |
|
Record Format |
MP4(H.264 Codec) |
|

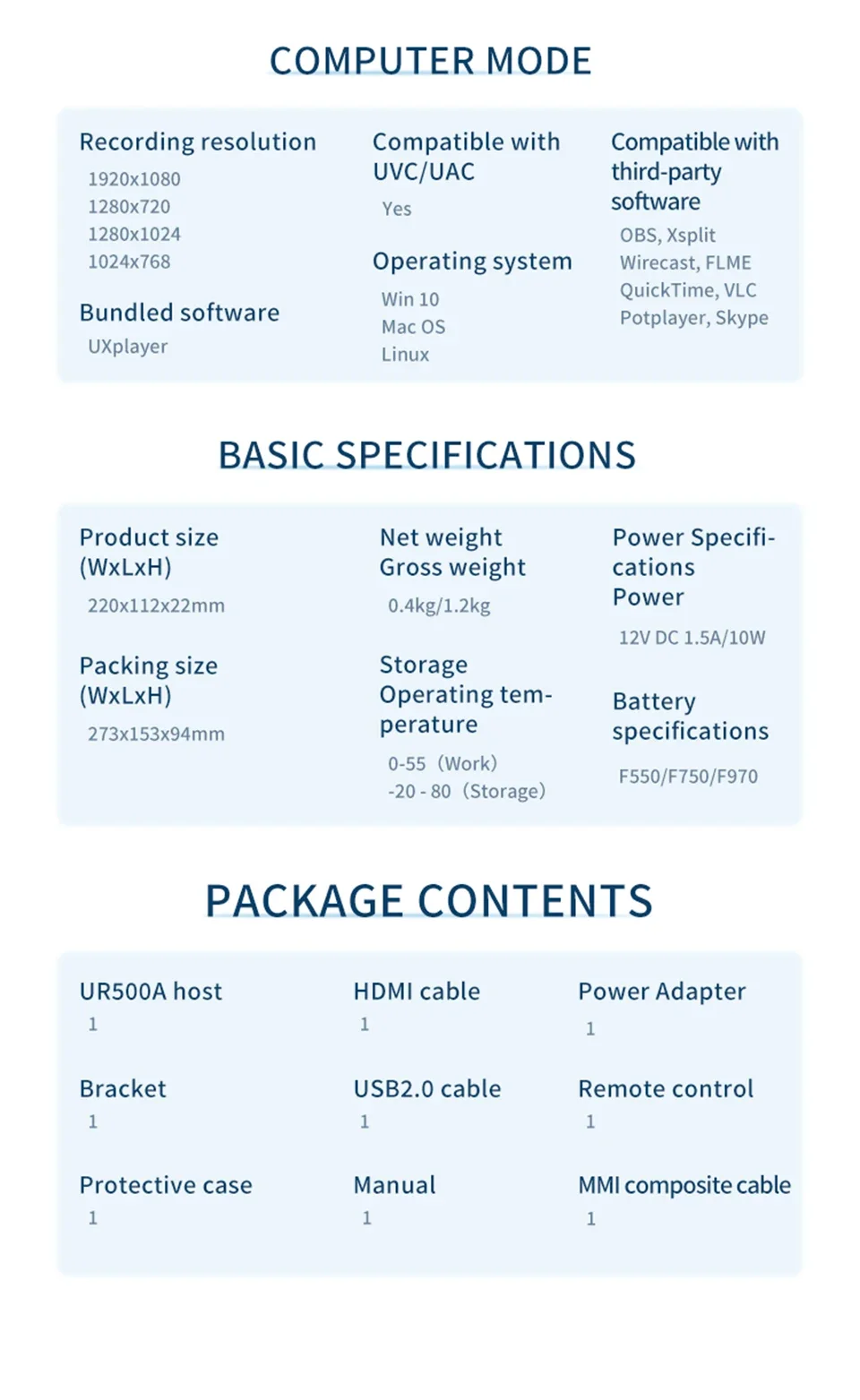

Computer Mode |
|
|
Record Resolution |
1920x1080/1280x720/1280x1024/1024x768 |
|
Compatible UVC/UAC |
Yes |
|
Comatible System |
Win10/Mac OS/Linux |
|
Compatibility with 3rd application software |
OBS/Xsplit/Wirecast/FLME/QuickTime/VLC/Potplayer/Skype |
|
Attached Software |
UXplayer |
|
General |
|
|
Dimension(W×L×H) |
220x112x22mm |
|
Package(W×L×H) |
273x153x94mm |
|
Net/Gross Weight |
0.4kg/1.2kg |
|
Temperature |
0-55(Work),-20-80(Storage) |
|
Power/Consumption |
12V DC 1.5A/10w |
|

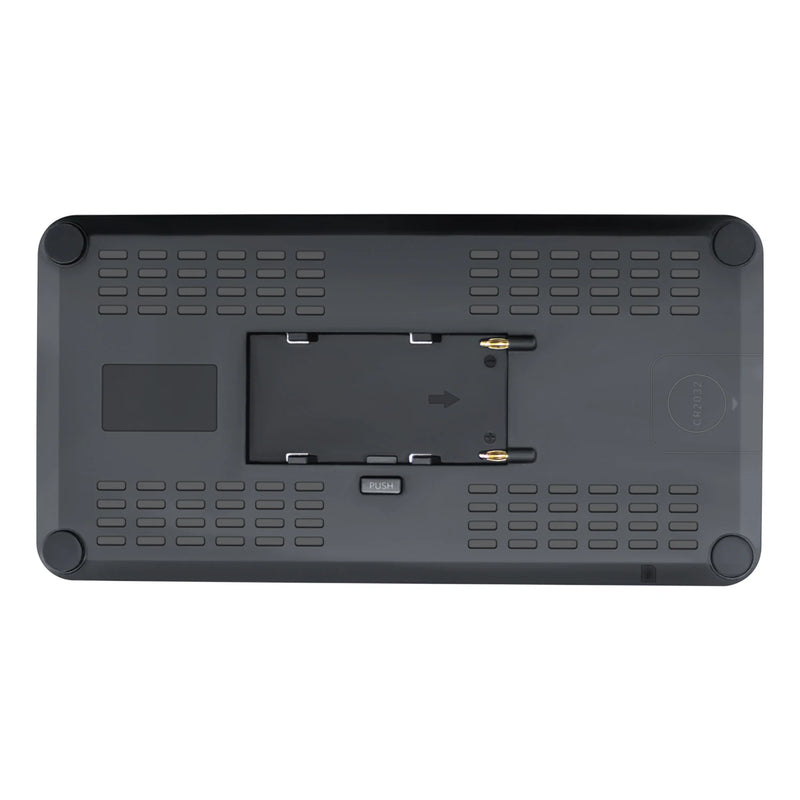

Battery Support |
F550/F750/F970 |
|

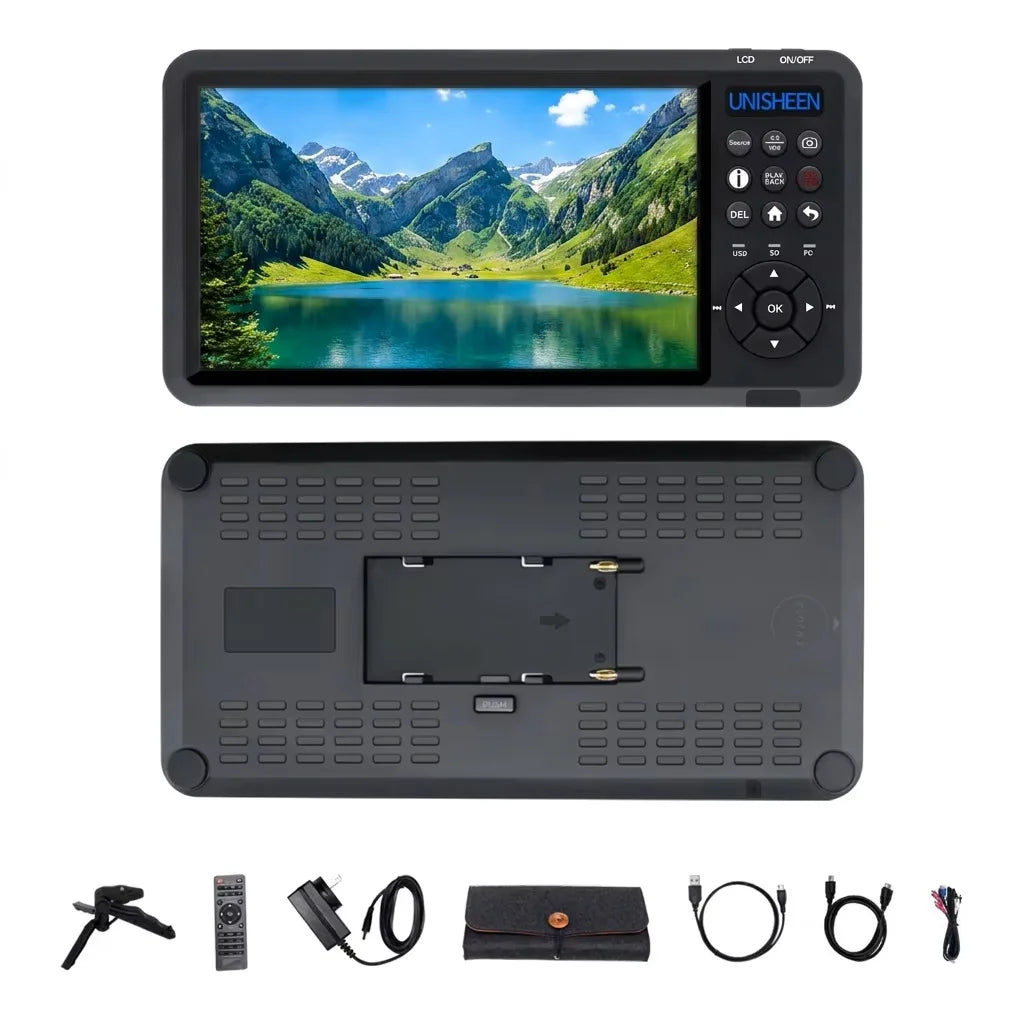

Included in Package |
|
|
UR500 |
1pcs |
|
Holder |
1pcs |
|
HDMI Cable 1.2M |
1pcs |
|
USB2.0 0.8M |
1pcs |
|
Power Adapter |
1pcs |
|
Remote Control |
1pcs |
|
Manual |
1pcs |
