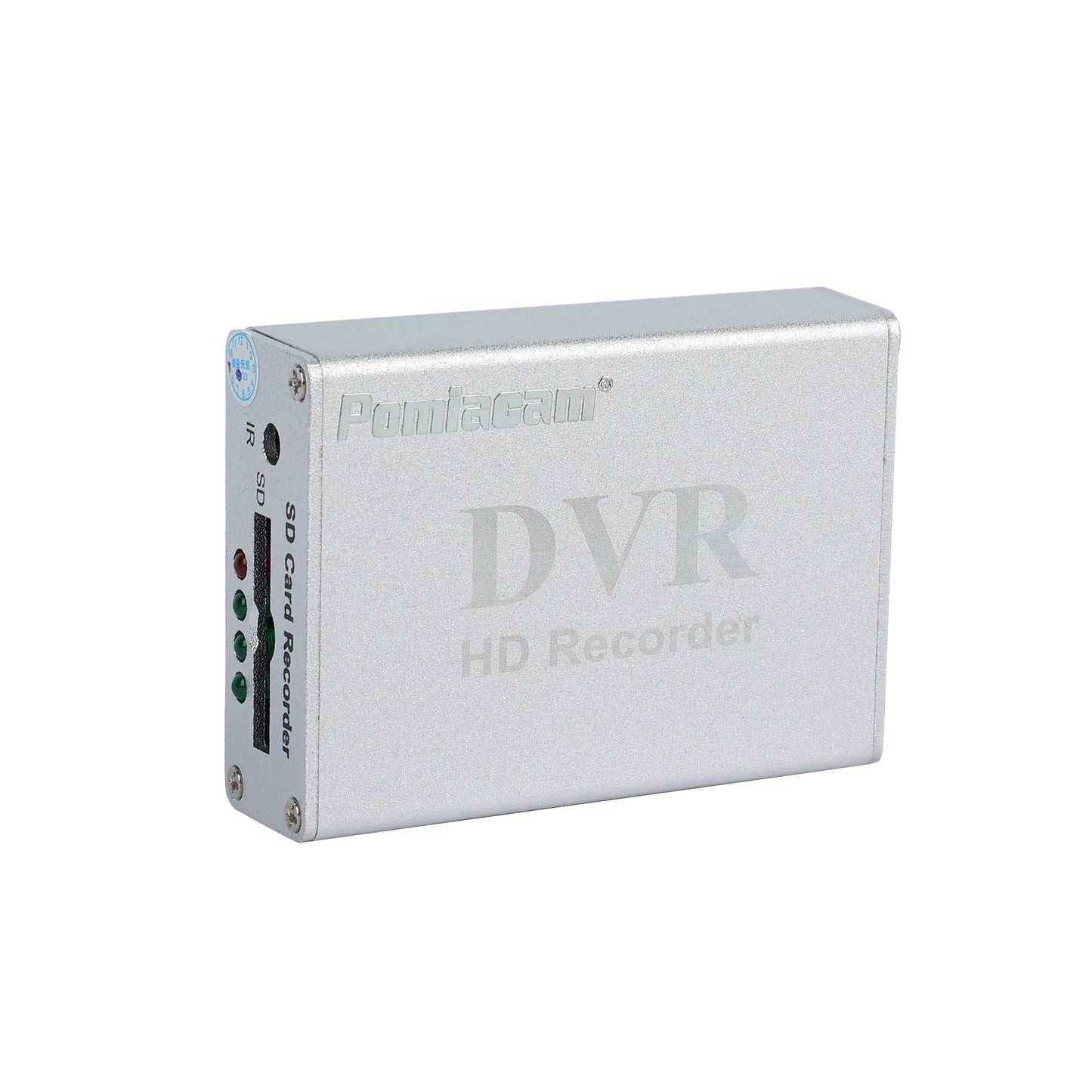

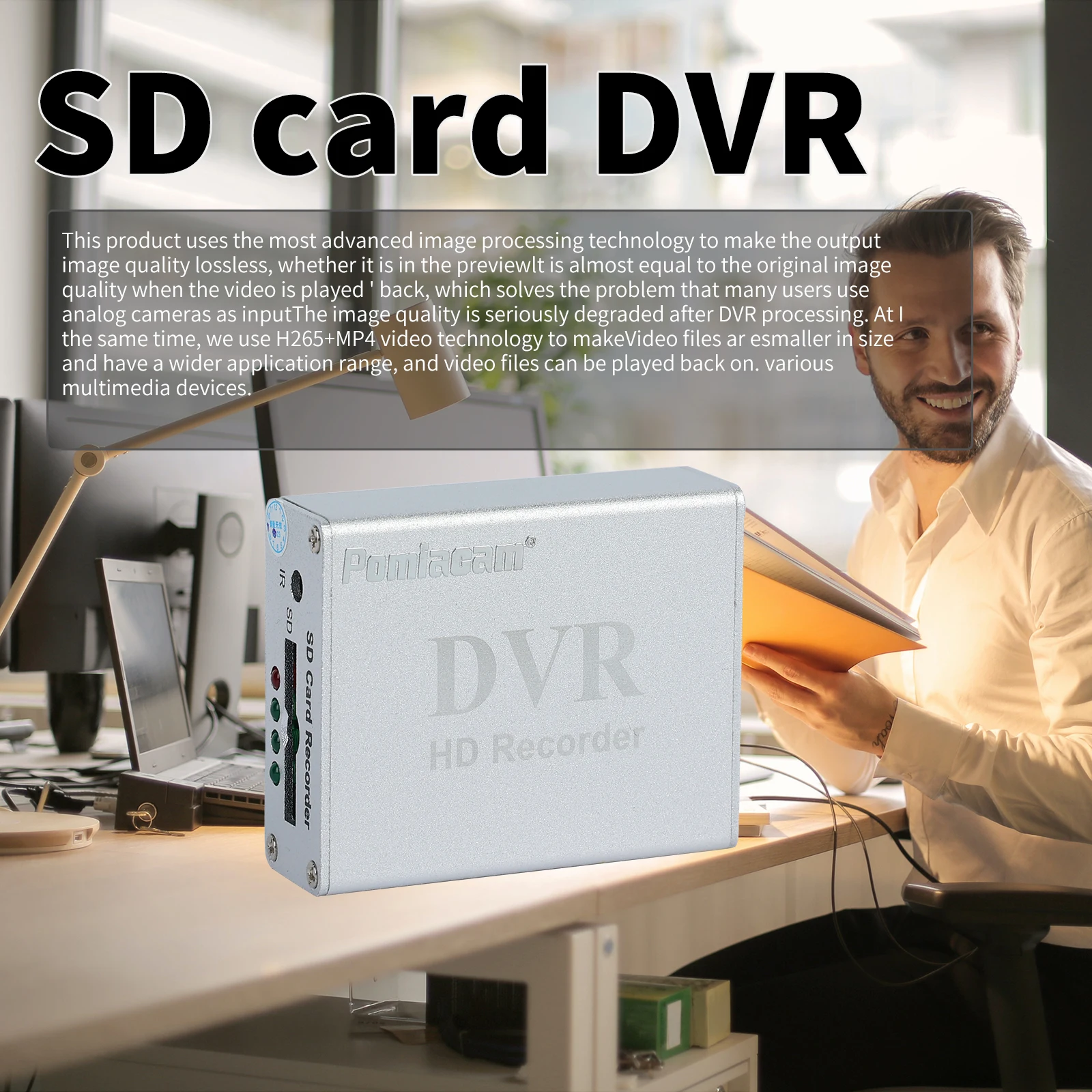

SD card video recorder board is a high-performance, high-definition digital video recorder; board is 60*45mm. It adapts MPEG-4 video compression, and single channel resolution  up to D1(704*576), 30fps, is a fully real-time, high-definition, low power consumption, easy-operated, super-smart professional DVR.

It supports power-up record, motion detect record, scheduled record, and manual record, SD card up to 32GB expandable, and directly playback by TV sets, monitor, and PC by SD card reader.

Features:

1. MPEG-4 video compression
2. D1(704*576) resolution
3. MPEG-4/ASF video format, MP3 audio format
4. Real-time stamp on videos, overwrite
5. Manual/scheduled/power-up record
6. audio input, audio compression 8KHZ/ADPCM
7. 5/15/30fps optional
8. SDHC memory support, up to 32GB
9. TV-out enables better resolution by TV set
10. MPEG-4/ASF playback

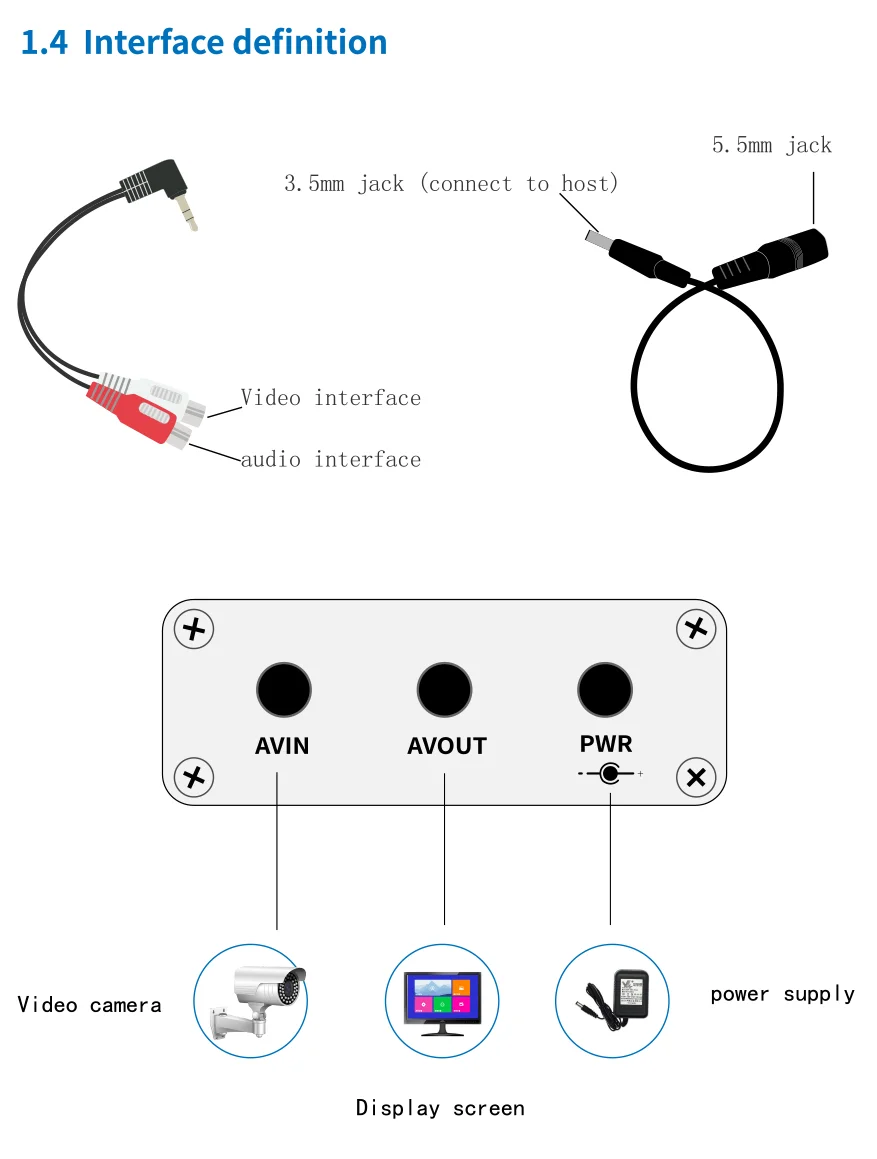

11. AV-IN, AV-OUT directly connect with camera, TV, monitor

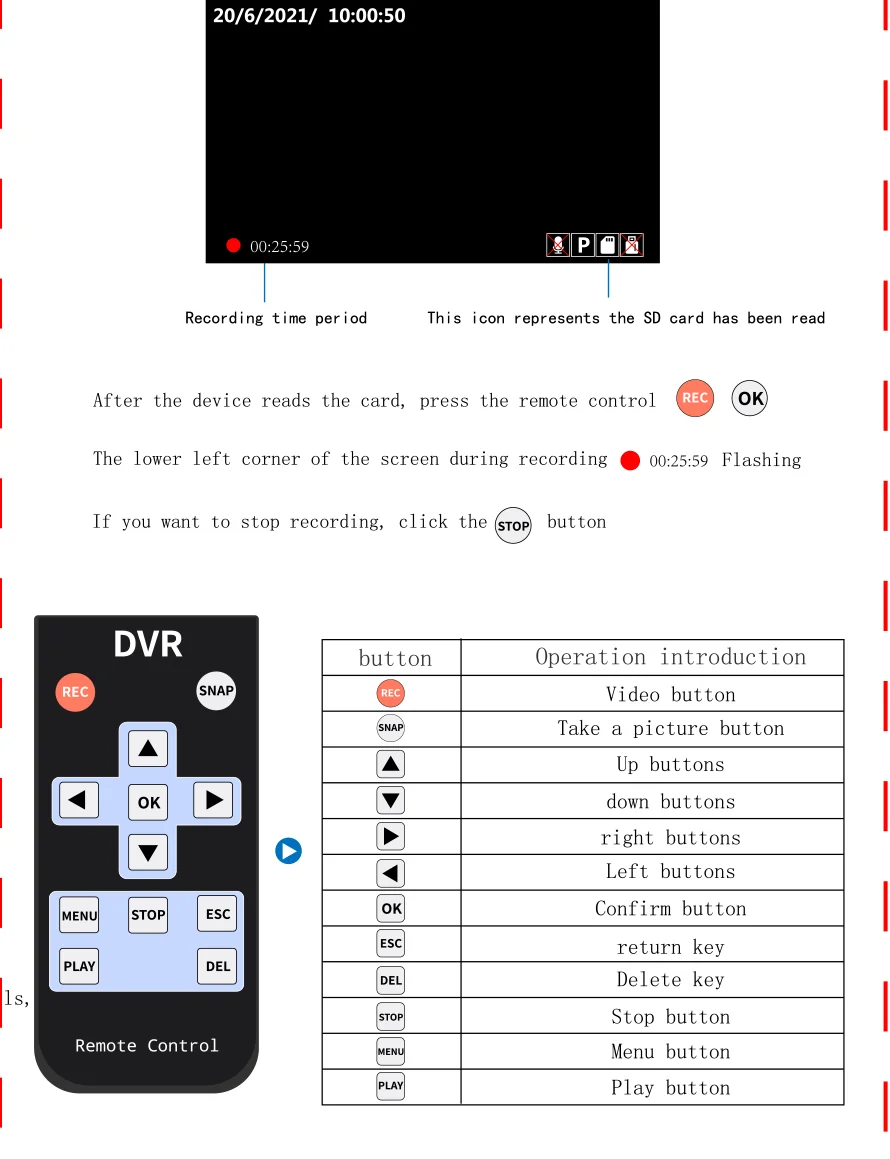

12. Support IR remote operation, built-in ADC for external keyboards
13. Support manually snapshot, auto record by triggering port
14. Built-in RS232 series port, enables external remote, keyboard for operation and software set-up
15. 5-35V for wide power supply use
16. Low power-consumption, 1W when standby, 2W when recording
17. Electronic dog ensures normal working
18. Board dimension: 60*45mm, net weight 100g, with position holes for different expandable use

Board application:

The board supports wide voltage input, suitable for all vehicles use;
SD card for storage avoid vehicle shock;
resolution D1/VGA/QVGA and frames 5/15/30fps optional for different requirements in different conditions.

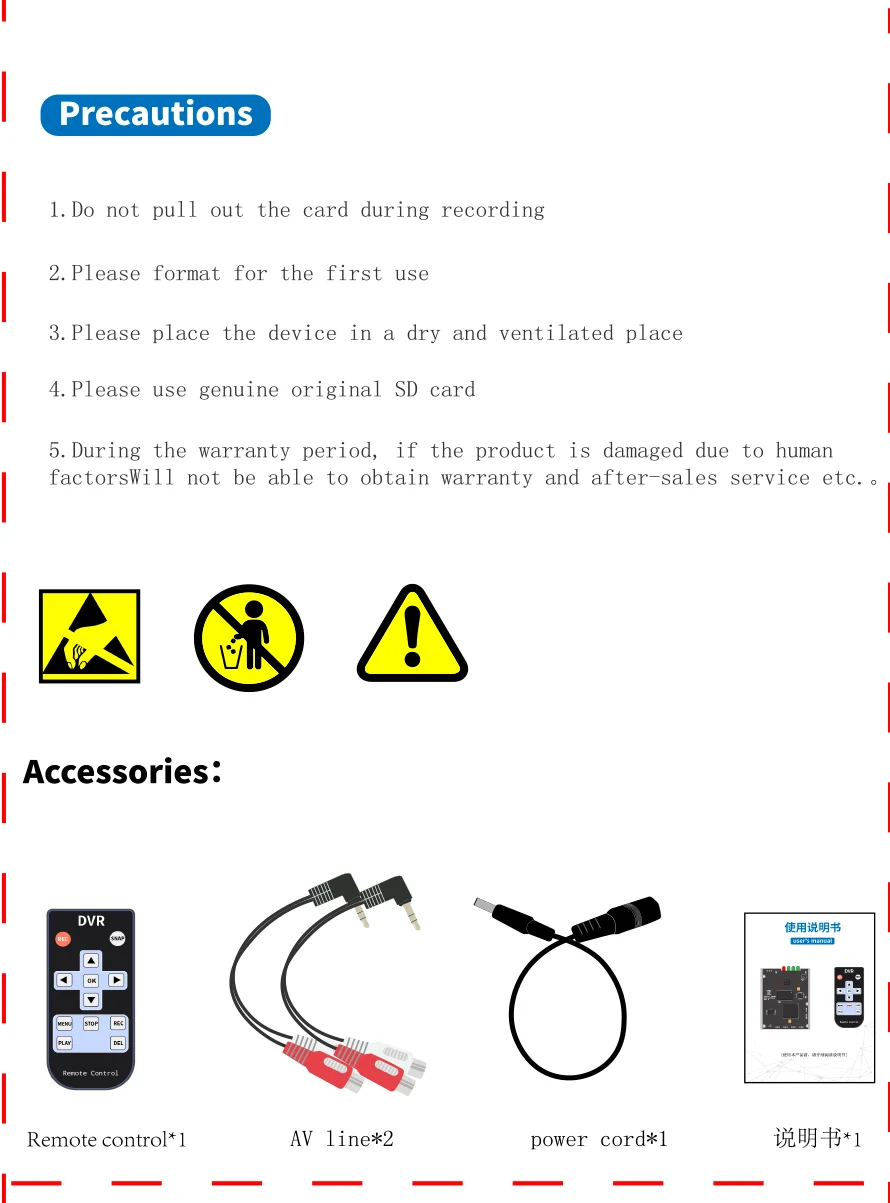

Packing List:

MAQ:

Q: DVR can not read SD card
A: Please use 1GB to 32GB genuine SD card.

Q: No images on TV after turn on the DVR.
A: Please check the cable is correctly connected. Yellow connector should connect with
video input port on TV.

Q: No sounds when playing video.
A: Please check the cable is correctly connected. Red connector should connect with a
udio input port on TV.
B: The camera connected with DVR should be with audio feature

Q: No recorded files in SD card after system records.
A: 1. Please check if the SD card works with DVR normally;
Please use 1GB to 32GB genuine SD card.

Q: DVR system crashes when it is on.
A: 1. You can not take out or insert SD card when it is on;
2. Please make sure it is a genuine SD card.

Q: DVR doesn't record video when motion detected.
A: 1. Please set "Recording mode" to "Motion Detection"
Set "Sensitivity","Speed" and "Noise Margin" according to the suggestions on

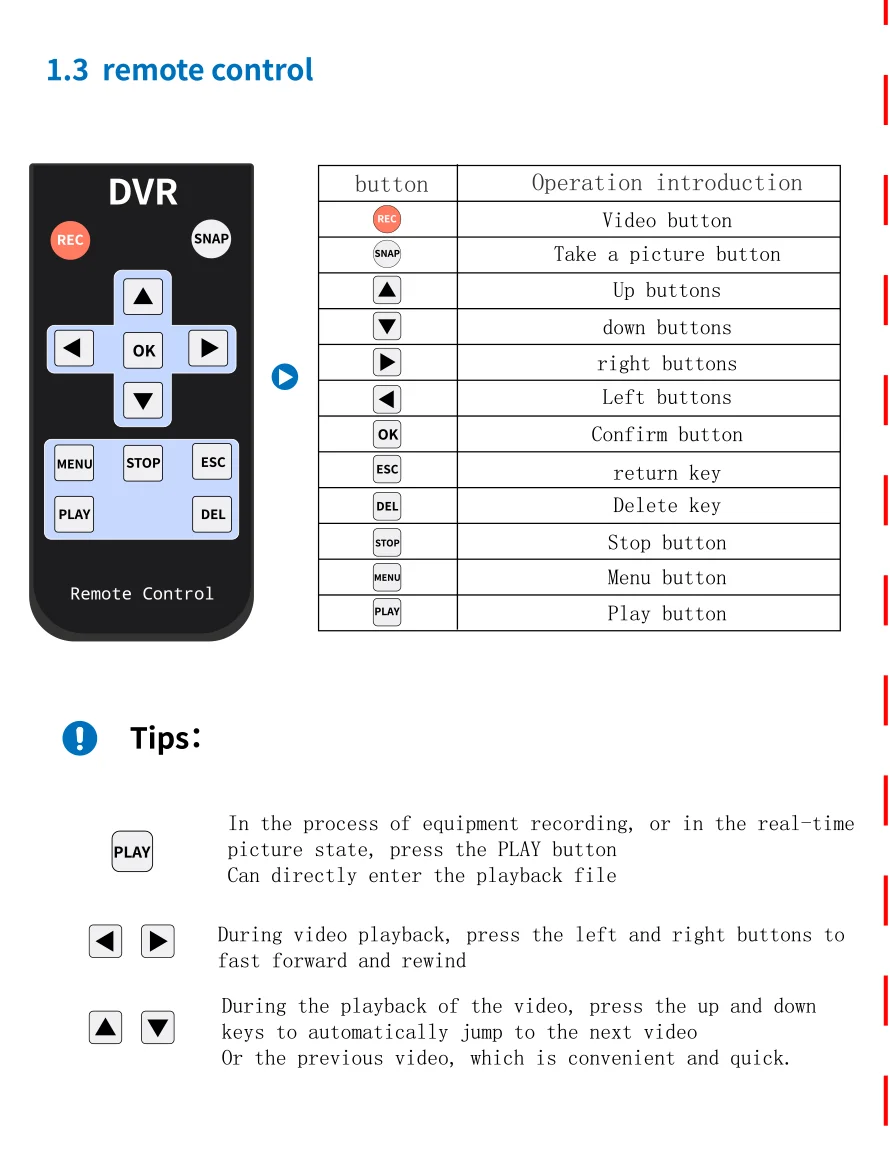

Q: Remote control is not working.
A: 1. Check whether remote battery is flat: connect DVR with camera and monitor, pres
s anybuttons on remote, with remote LED facing the camera to see whether there is a s
park .
