HDVR004 DVR 4G WIFI GPS 4CH Vehicle Mobile Full HD 1080P SD Card Video Recorder Car DVR Bus Camera Security monitoring system
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
4G WIFI GPS 4CH Vehicle Mobile DVR HDVR004 Full HD 1080P SD Card Video Recorder Car DVR Bus Camera Security monitoring system
1080P+4G+WIFI+GPS, 4Ch Bus 1080P Video Camera System DVR
Please note: Exclusive Agent Selling In North American. Please don't order online if you will use this In Norh American.

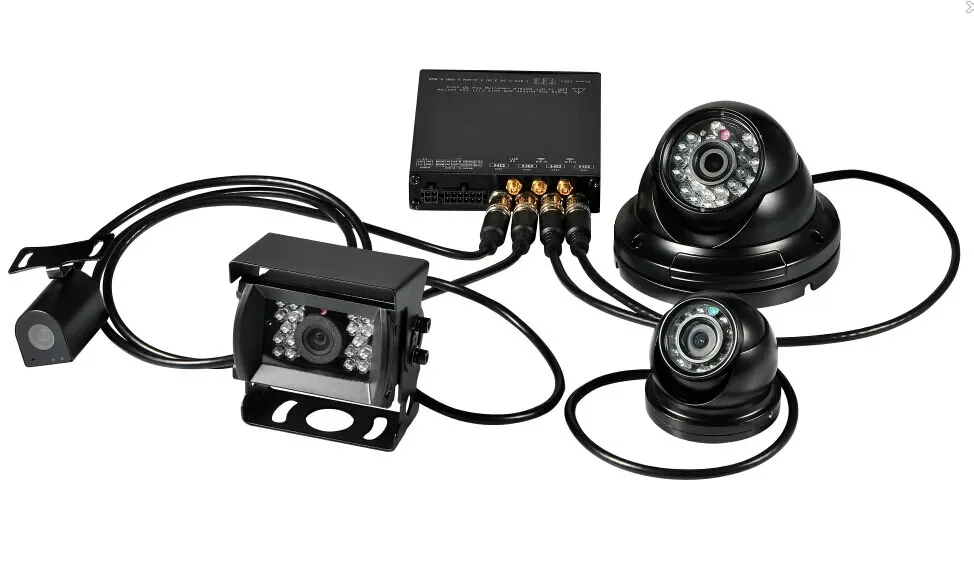

1. one 4CH 1080P FHD HDD MDVR ( Support GPS + WIFI +4G )
2. two 9M HD Extension Cable
3. two 6M HD Extension Cable

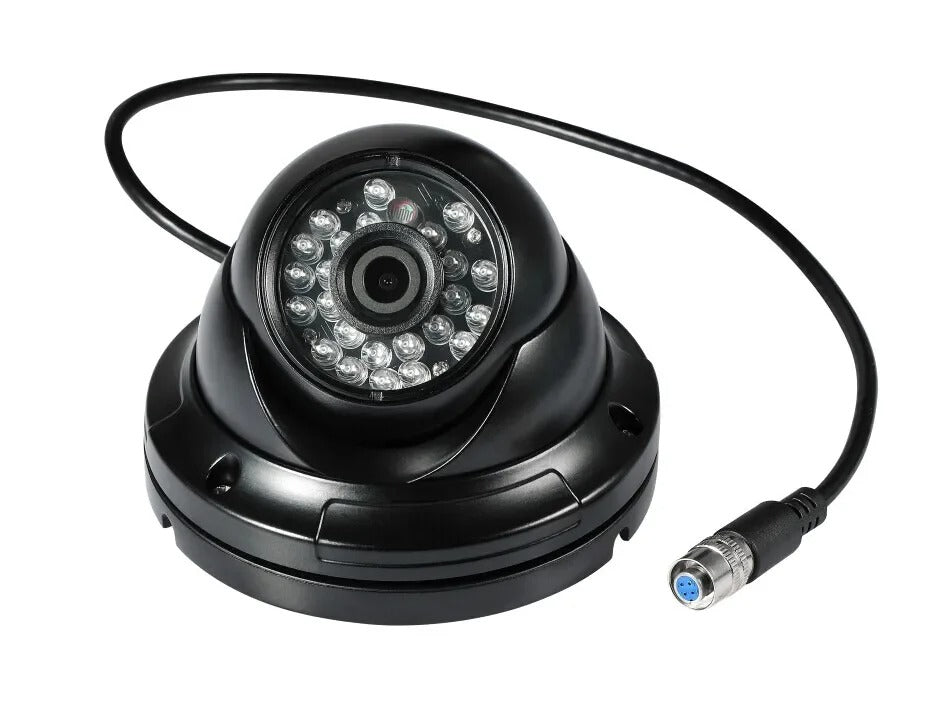

4. one 1080P FHD Dome Camera

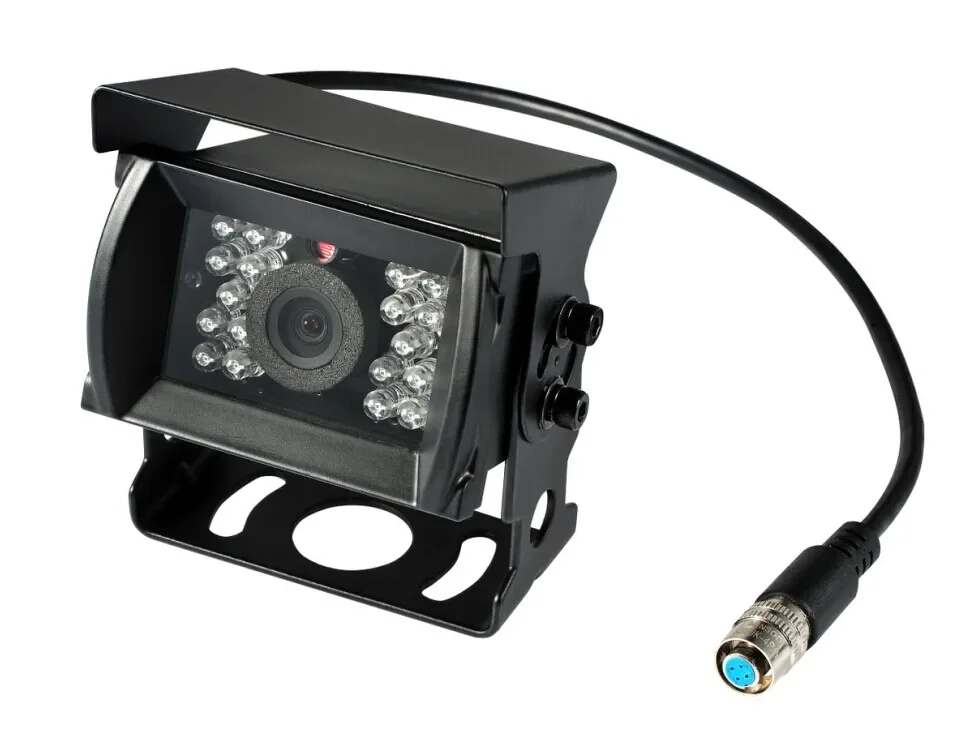

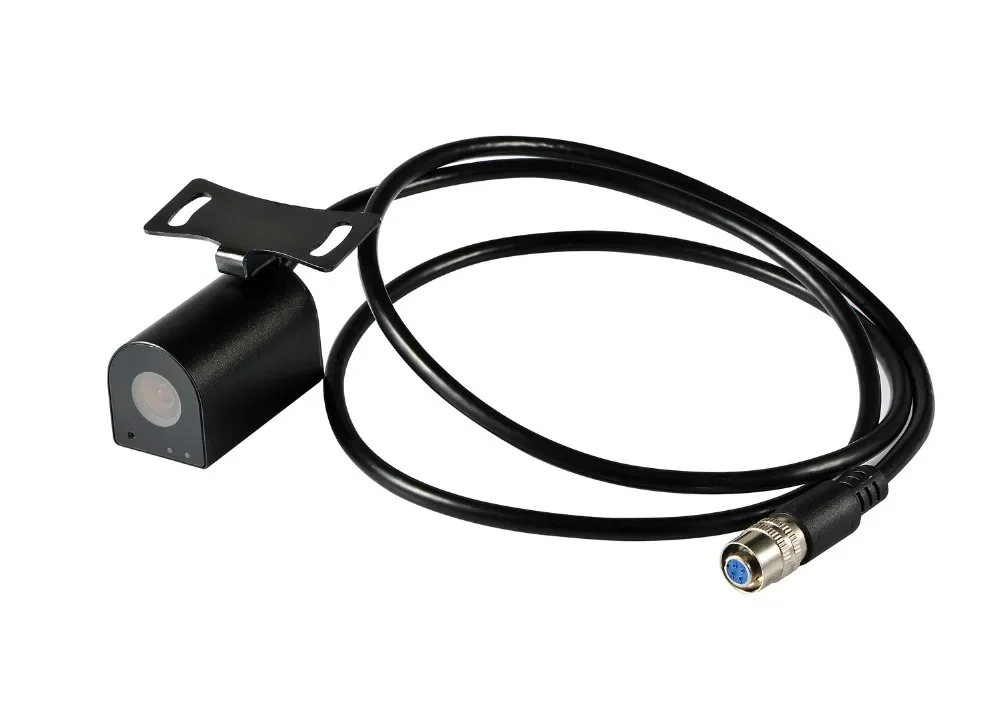

5. one 1080P FHD Rear-view Camera

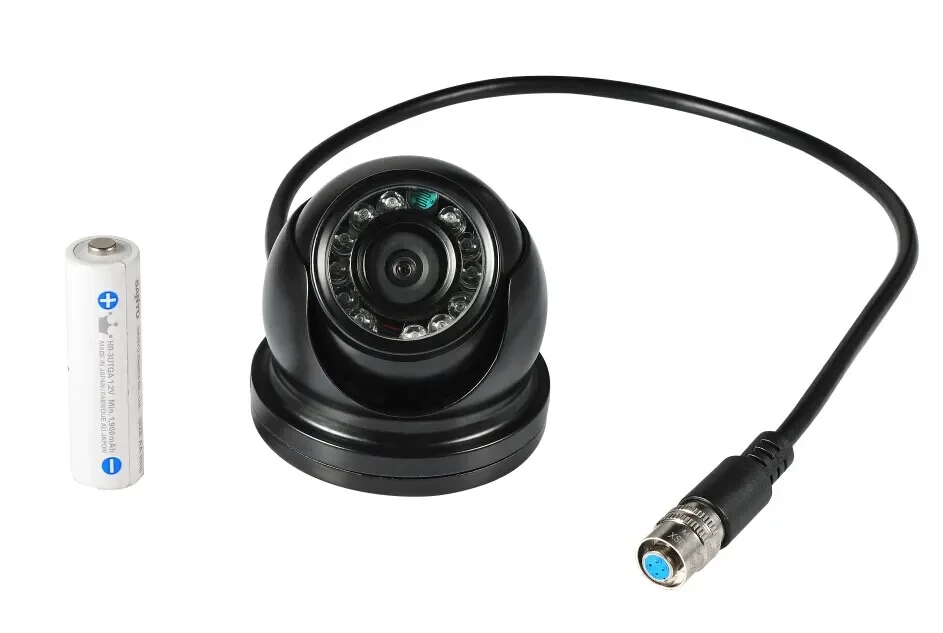

6. one 1080P FHD Mini Dome Camera
7. one 1080P FHD Mini Camera
4/8-Channel 1080P/720P Video & Audio with Multiple HD Camera Options
The 4/8CH HD MDVR allows up to 8 true high definition (1920*1080) cameras to record the highest video quality. Each camera supports up to 1080p30, ideal for capturing vehicle plate number.
The HD cameras capture extremely wide angle (around 130°)
One camera is enough for a small or mid-size vehicle, this will help to save cost by reducing 1 or 2 cameras.
Low bitrate for longer time recording with smart technology
The 4/8CH HD MDVR uses intelligent bitrate control to save media space when doing H.264 image compression. If no obvious moving in scope, the bitrate will be reduced to 50% of the set value automatically.
Video live view or download through WiFi (built-in)
Administrative personnel can use a laptop/smart phone/iPad to connect to the DVR to view and/or download videos. Allow three authorization levels for security access.
Highlighted features with 3G/4G network
Remotely Live view & GPS tracking on Google Map;
GPS track playback;
Geo-fencing with optional GPS receiver;
One picture will be sent to server as well as email alert when an alarm is triggered;
Reports for Speed, Alarm, Stop, Geo-fencing, Data flow, etc.
The smallest size for a 4/8-Channel Hard Drive DVR
Size of the 4/8CH HD MDVR is very compact, only 5.63 "x 5.2" x 1.18 " ( 14.3cm x 13.2cm x 3cm ), allowing for exceptional versatility in mounting and installation. With a compact footprint and solid-state design, the 1080P High Definition Bus Camera Recorder can be mounted almost anywhere in any orientation.

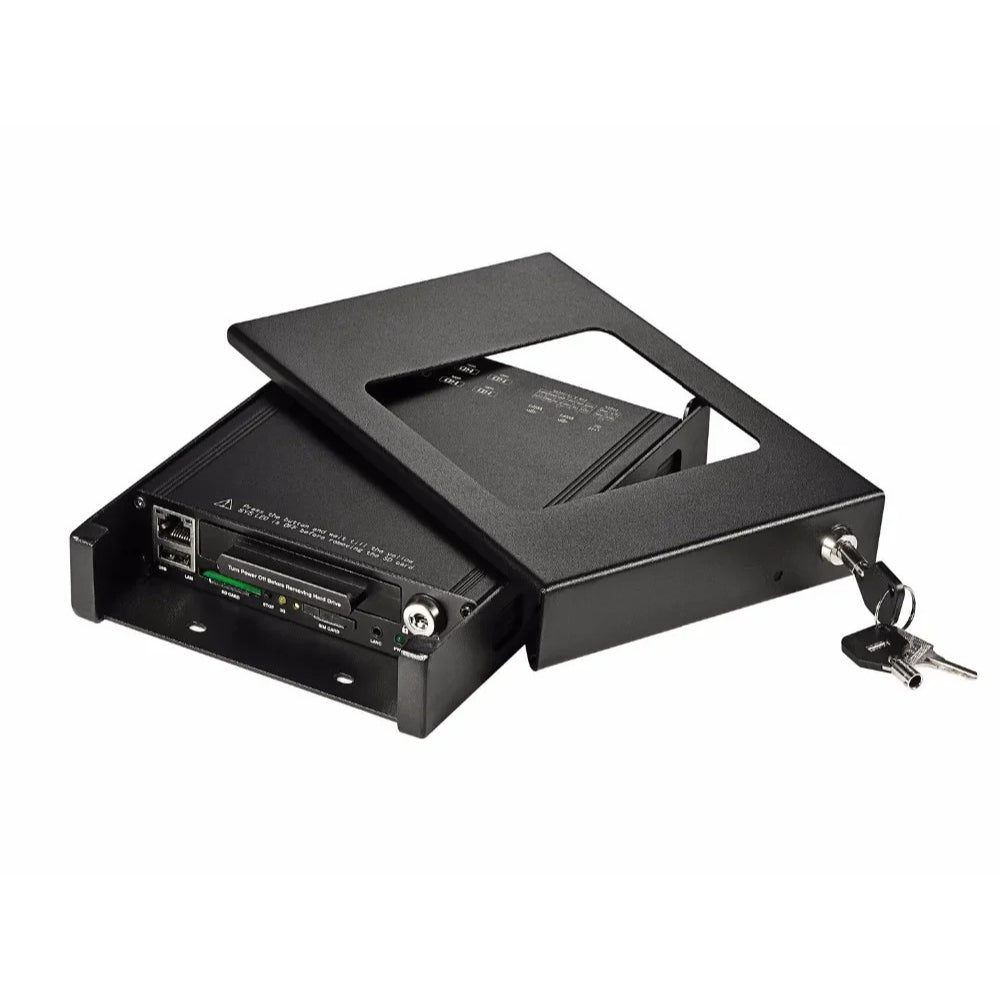

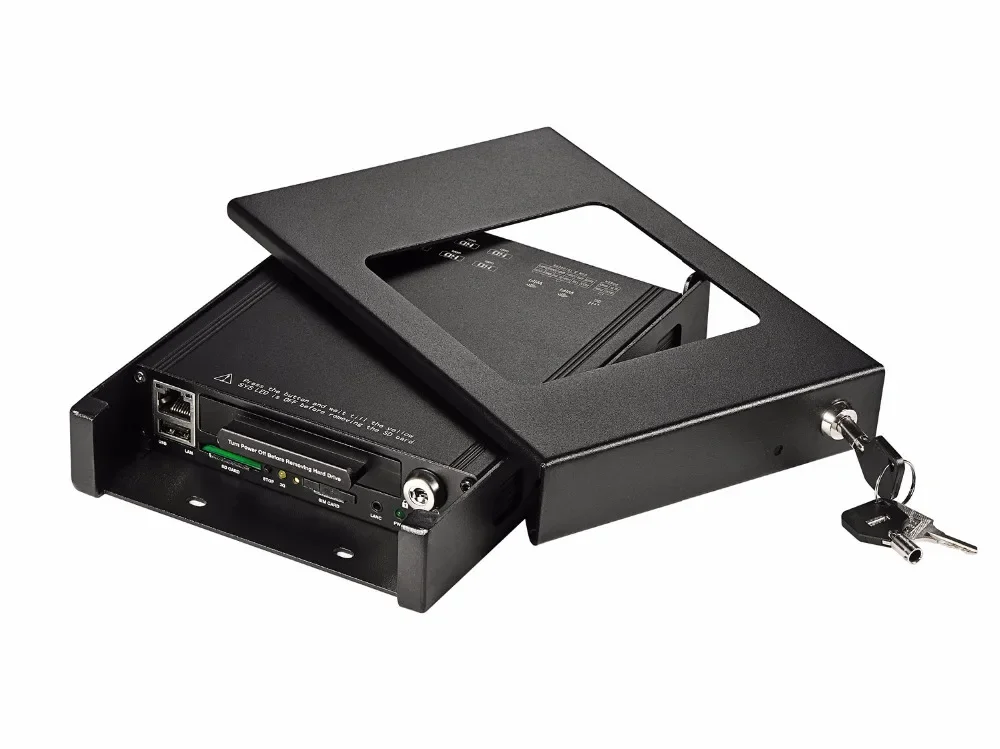

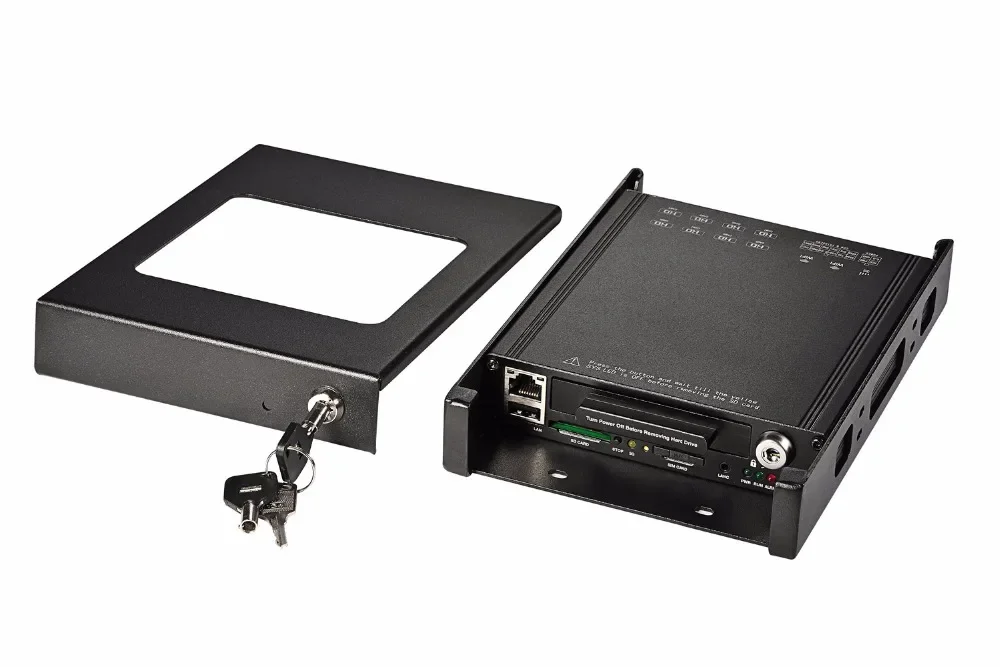

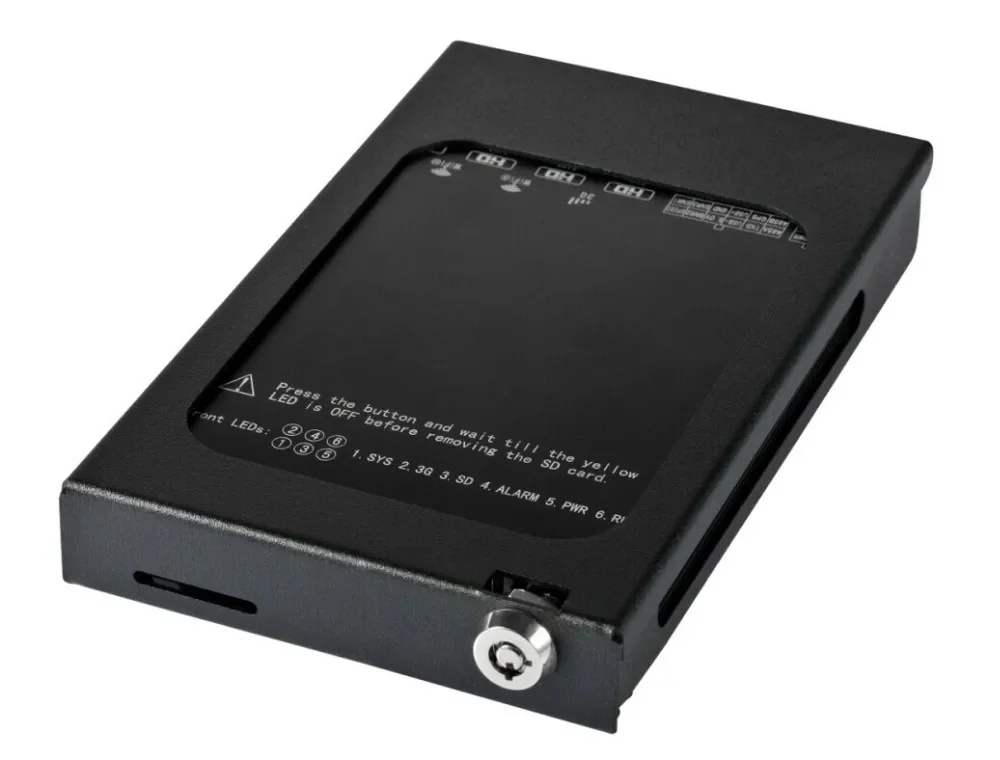

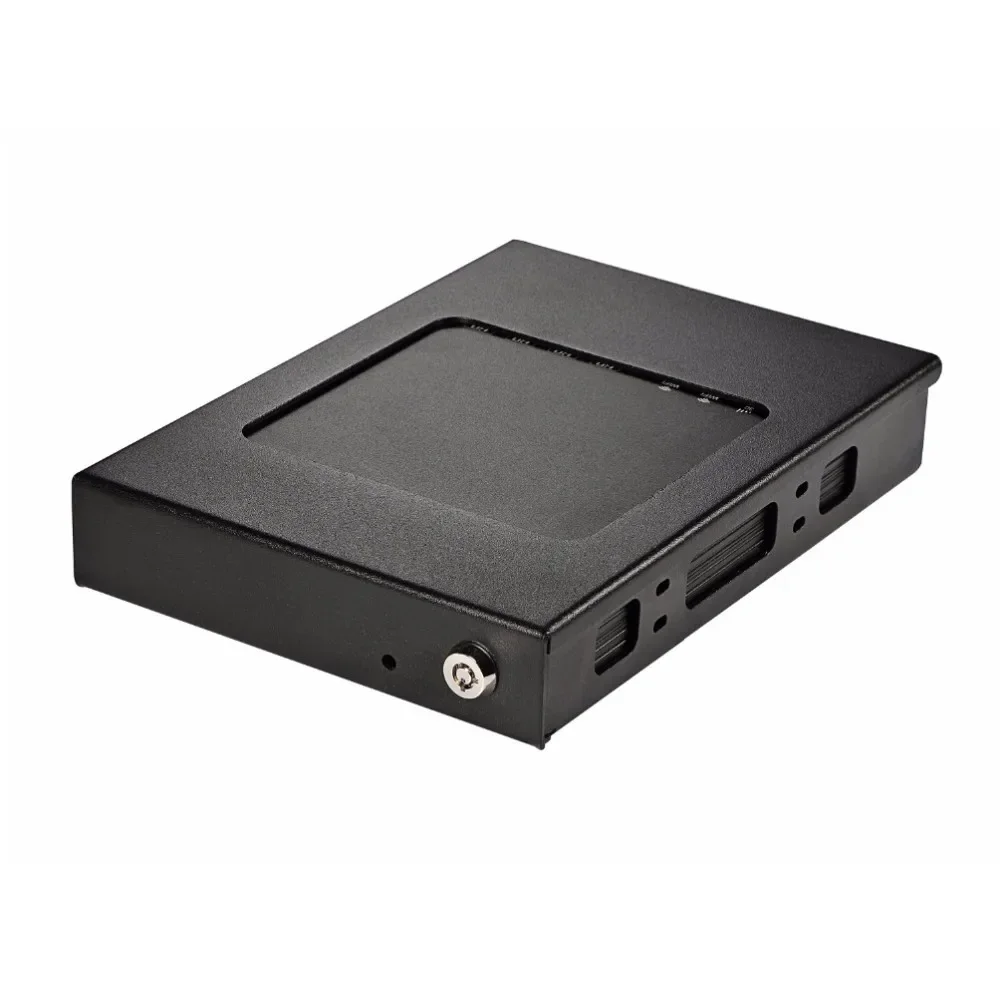

Tamper-proof Case with Lock & Key
1080P/720P High Definition DVR with WiFi and G-Force Sensor built-in (no extra cost)
Up to 4/8 1080P/720P High Definition Cameras
Extension Cable (5m and 10m for option, or customized-made length according to your application)
2TB 2.5"SSD/HDD , Class 10 SD Card.
Specifications

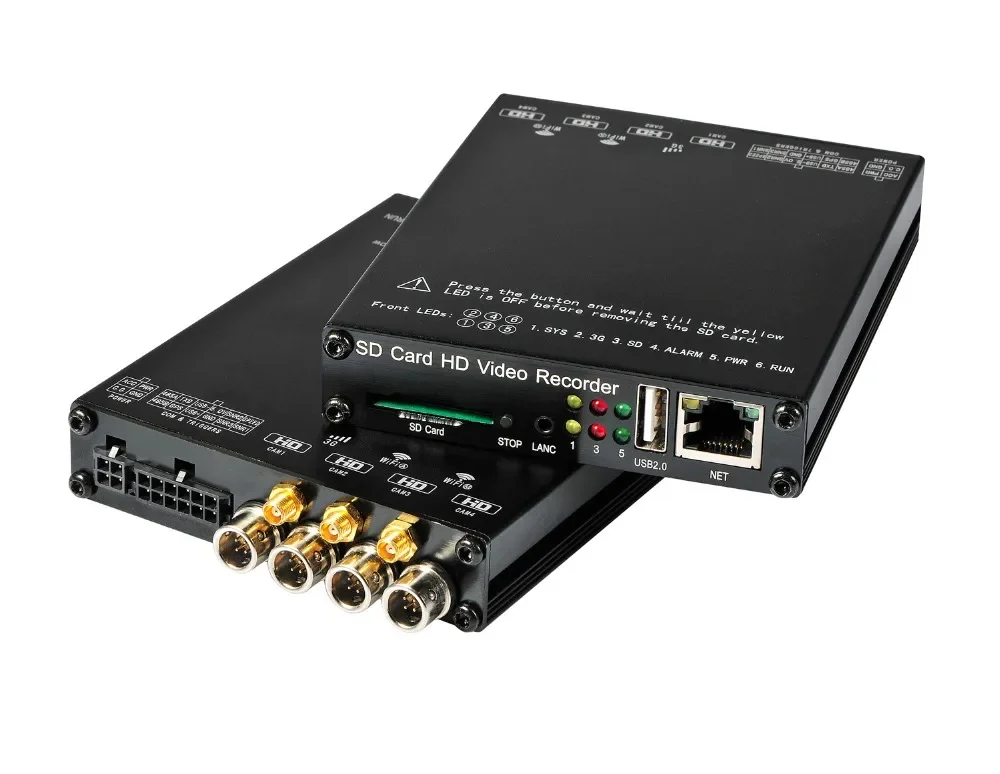

The HDVR series mobile digital video recorder is a compact, full-featured H.264 1080p/720p recording system that uses a SD card as a storage device. The recorder unit and associated accessories are specifically designed for operation in a mobile environment.
The HDVR system, used in conjunction with the cameras, records up to four channels of full-motion video and audio data to a Class 10 (minimum) SD card. The firmware-driven menu system provides a simple method for configuring the unit's operation as well as searching for and viewing previously recorded AV records.
*Embedded operating system, assuring reliability and system integrity.
*Records up to four channels of full-motion color video with corresponding audio tracks.
*H.264 High Profile video compression.
*Total Record resource up to 120 1080P frame/second.
*Lockable security enclosure.
*Front panel USB2 port for recording to a flash card as an optional storage device.
*Ignition sense that provides DVR power-on in recording mode when the bus is started.
*Power-off delay record when the bus is shut-down with operator-selected delay times.
*1080P 4CH Vehicle DVR 4G HDVR004
*Rugged Solid State Design
*Wireless Video Review
*Remote Live Video Viewing
*GPS Route
*H.264 High Profile video compression, real time recording 1080p30, 720p30 and 540p30 for each channel. Frame rate adjustable for each channel.
*Audio compression:16bit 48KHz AAC codec. This codec offers high compression with high quality audio.
*1080P resolution for each channel, which means each channel support 1920x1080 @30fps.
*Support 4 channel real time 1080P video and 4 channel audio recording.
*Real time live HD video and audio through WiFi, support Windows, Android and iOS
*Recorded HD video and audio real time playback over WiFi
Model: AUTOPVISION HDVR004
System:
Operating System: Linux 2.6
Start up Time: <20 seconds (From power on to recording)
Operator Interface: English / Simplified Chinese/Russian
Storage:SD Card (up to 128GB)
Video System: H.264 Main/High Profile, HD 1080p30/720p30/540p30 Recording for
each channel
Voltage Input / Output: Input: 8 V ~ 32 V DC, Output: 12V/1.5A (4 channels)
Video;
Video Input: Maximum 4 x 1080p/720p camera inputs
Video output: Note book/iPhone/iPad/Android Pad/Android Phone
Preview: 1 image / 4 images
Standard Stream: ISO 14496-10
Recording Resolution: Selectable (1920x1080, 1280x720, 960x540)
Recording: Supports normal, schedule, alarm recording and continuous
Video Compression: H.264 (High profile up to level 4.1)
Max fps (total) : 120fps@1080p
Audio
Audio Input: Build in Camera
Audio compression: AAC (16bit, 48KHz)
Interface I/O
LAN: 1(RJ-45) 10M / 100M Ethernet port
USB: Supports USB 2.0 for U-Disk recording
Serial: RS-232×1
Network
WiFi: Build in 802.11b/g/n AP, speed up to 300Mbps
Protocolo: TCP / IP
Communication: 3G/EDGE/GPRS/CDMA (Only for HDVR004GW)
Alarm & Sensor
Inputs: 3 Alarm input, 1 speed, 1 ignition, 1 Panic button, G-Sensor
Outputs: 1 Beeper, Alarm LED, Email
Multi-mode:Activation by video loss, maximum permissible speed, Collision, SD space, Video Motion, etc..
Power Supply
Ignition key: Recording starts when ignition is on, stops with delay time when
ignition is off.
Power Consumption: Average 2.0W (with SD and without providing power for the
cameras)
Physical Characters
Dimension: 12cm x 9cm x 2cm (4,75 "x 3,5" x 0,8 ")
Weight: 0.57kgs
Others
Backup: By WiFi (300Mbps, Actual download speed up to 150Mbps)
Clock: Internal, permanent calendar, Time sync from GPS (if available)
GPS: GPS/GLONASS module external
Function Dual Streaming: Allows you to configure the frame rate of different transmission
frame rate recording and bandwidth control
Self-protection: Protection against overload, short circuit and reverse polarity
Reset: Option to return to factory default setting
SD memory: Support SD card x 1 (support SDXC, up to 2TB)
LED's: Indicates Power, RUN, Alarm, Media Access, Recording status,network and 3G
Method of writing and reading of data: Overwrite ON/OFF selectable
Synchronization time: GPS Time Synch / NTP (Network Time Protocol) Time Synch via networking
Environment
Operating Temperature: -30 ~ 60°C
Relative humidity:5% - 95%
Vibration resistance: < 3 Grms
Resistance to mechanical shock: < 1200 Grms
Embedded Software
Config. FPS per channel: allows (1~30fps)
ID records vehicle license
plate: allows
USB: Record
Rename channels: allows
Watermark:fixed
Schedule: Settings hour, minute, 3 time plans per day
Image Playback: Includes date and time, latitude and longitude, vehicle speed, and
vehicle ID plate and name or channel number
Playback Speed: Speed forward 1x ~ 16
