Capture Crystal-Clear Video with the 4K PRO BOX DVI HDMI VGA to USB3.0 Capture Card HD video capture device HDMI Loop Out

Capture Crystal-Clear Video with the 4K PRO BOX DVI HDMI VGA to USB3.0 Capture Card HD video capture device HDMI Loop Out

€930,00 EUR
€1.328,57 EUR €930,00 EUR
Sale Sold out
Shipping calculated at checkout.
Color

Care Instructions

Factory direct sales,Support Wholesale, support OEM
OEM: You can customize your logo the startup screen. Wholesale more than 50 pieces customized
If you need customization, please contact me.
Whatsapp: +86 137 9825 0203
Email: sales09@autopvision.com

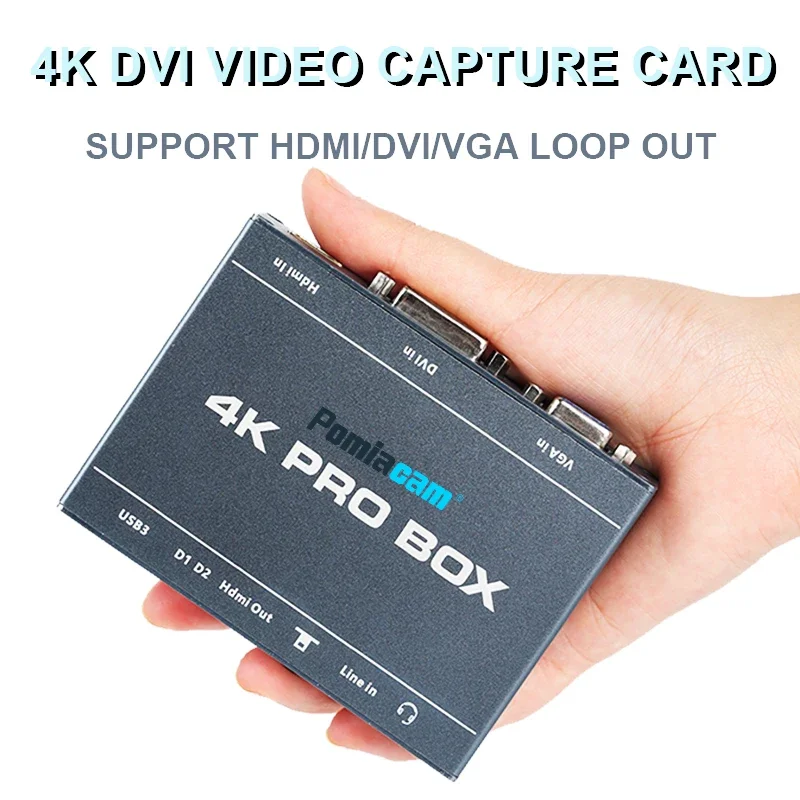

4K PRO BOX DVI HDMI VGA to USB3.0 Capture Card HD video capture device HDMI loop out 1080P 60fps output plug and play HD AV capture device



Factory direct sales Bulk Order Support customization


Advantages of use

Can be performed at the same time: game console screen playback (HDMI) + MP3 playback (background music) + microphone (real-time commentary)



Features:

  • DVI/VGA/HDMI video input

  • USB3.0 output and HDMI loop out

  • Audio/Microphone input, audio mixing available.

  • Standard UVC/UAC

  • Max. 4K input, 1080P 60FPS output

  • Free driver, plug and play

  • Windows, Linux, Android and Mac system support

Specification:

Input port

DVI,HDMI,VGA

Output port

USB3.0,HDMI

Audio port spec.

3 grades 3.5mm jack, 4 grades 3.5mm jack

Video output resolution

1920*1080,1600*1200,1360*768,1280*1024,1280*960,1280*720,1024*768,800*600,720*480,720*576,640*480

Video format

YUY2,MJPEG

Frame

60/50/40/30/25/15/10 and so on

AV protocal

Standard UVC/UAC

Driver

Free driver, plug and play

Operation System

Windows/Linux/Android/MAC

Software

PC camera,OBS,Potplayer (windows)

Consumption

＜3Wat

Working Temp.

-20℃~65℃

Working Humi.

5%-90%

Size

102mm*82mm*25mm

Weight

device:200g, full set:650g

Video output resolution:1920X1080/1600X1200/1360X768/1280X1024/1280X960/1280X720/1024X768/800X600/720X480/720X576/640X480
