AUTOPVISION

analog CVBS/ AHD 1080P/720P video inputProfessional Core Board for Pipeline Inspection System Recording with Video Audio record

analog CVBS/ AHD 1080P/720P video inputProfessional Core Board for Pipeline Inspection System Recording with Video Audio record

Regular price €0,00 EUR
Regular price €87,40 EUR Sale price €0,00 EUR
Sale Sold out

Care Instructions

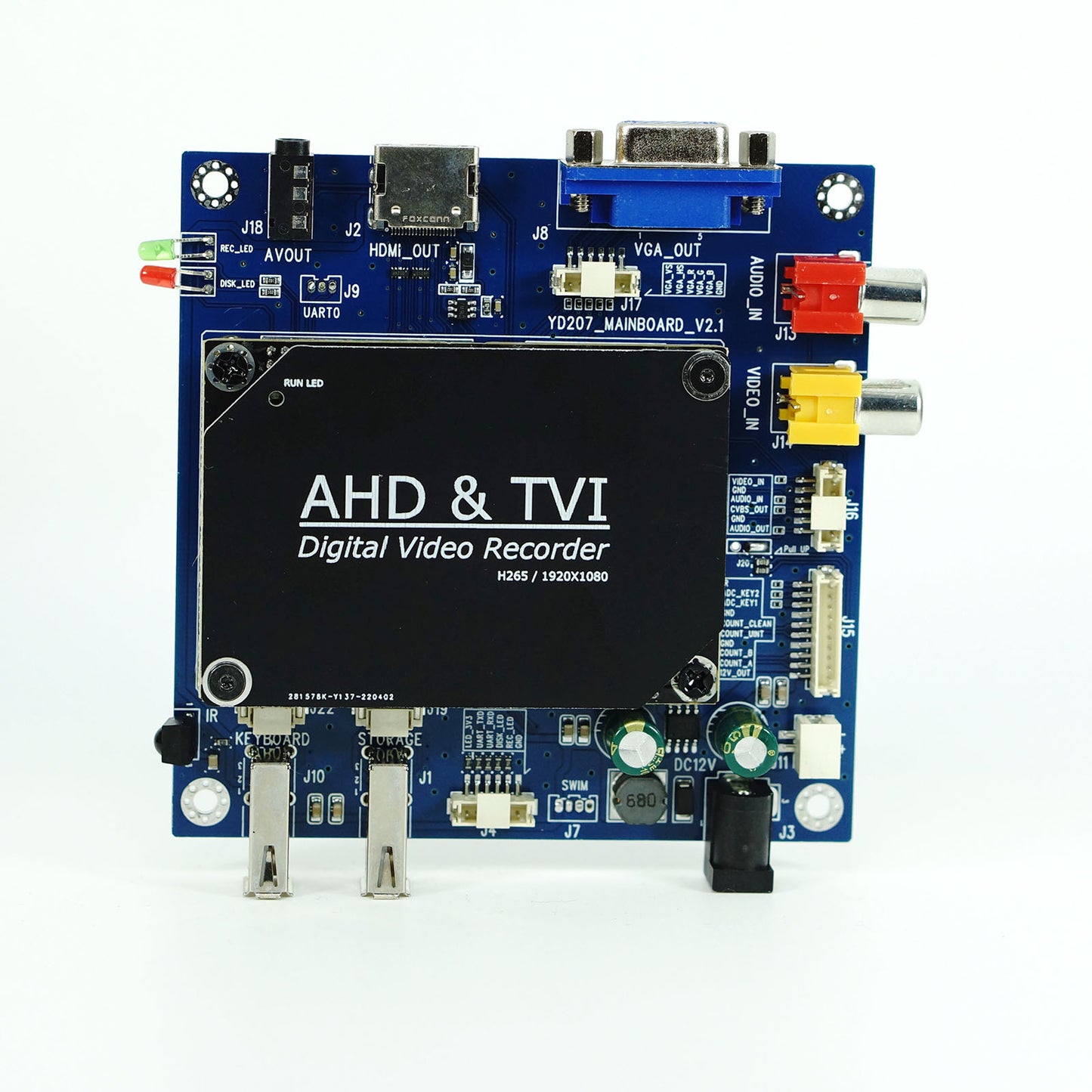

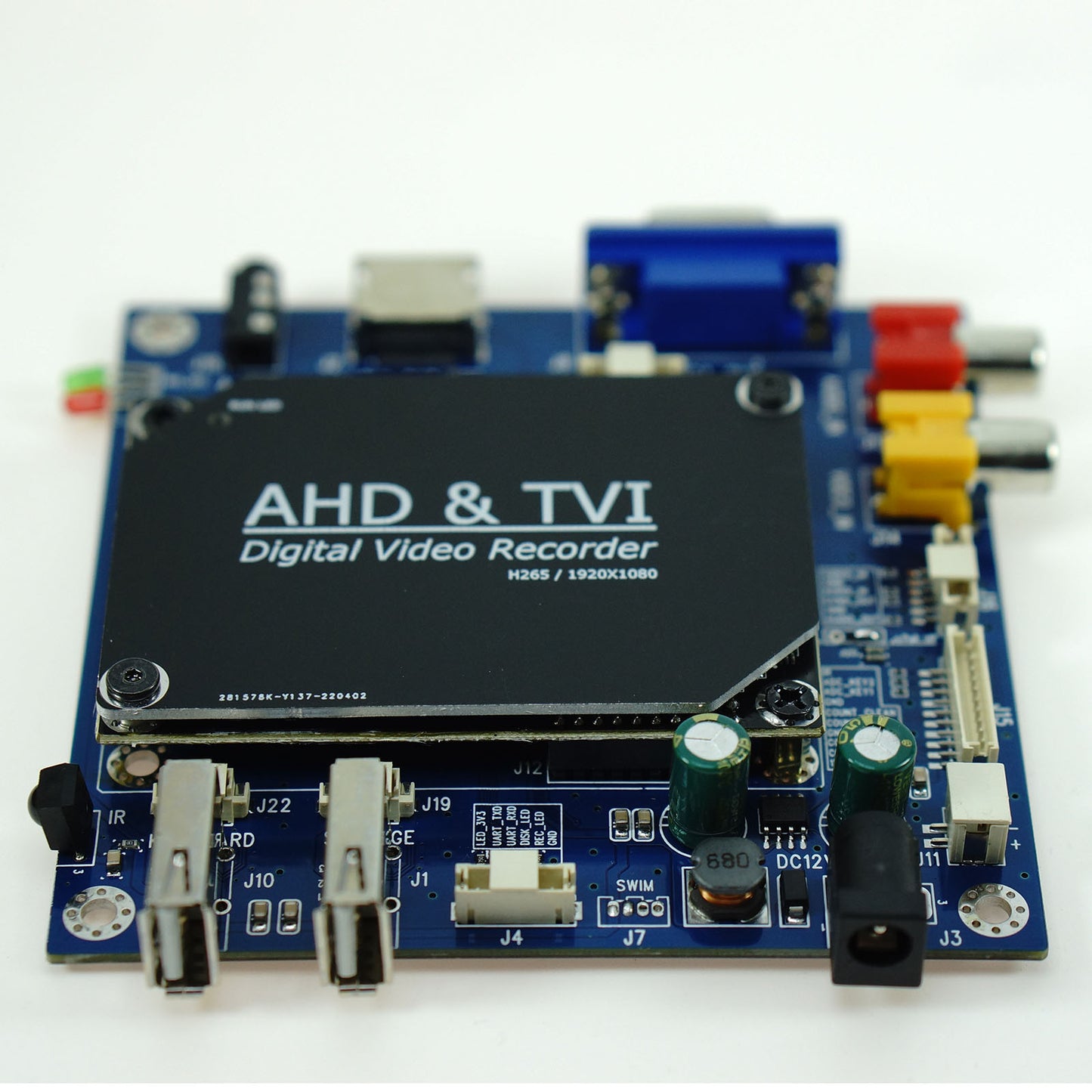

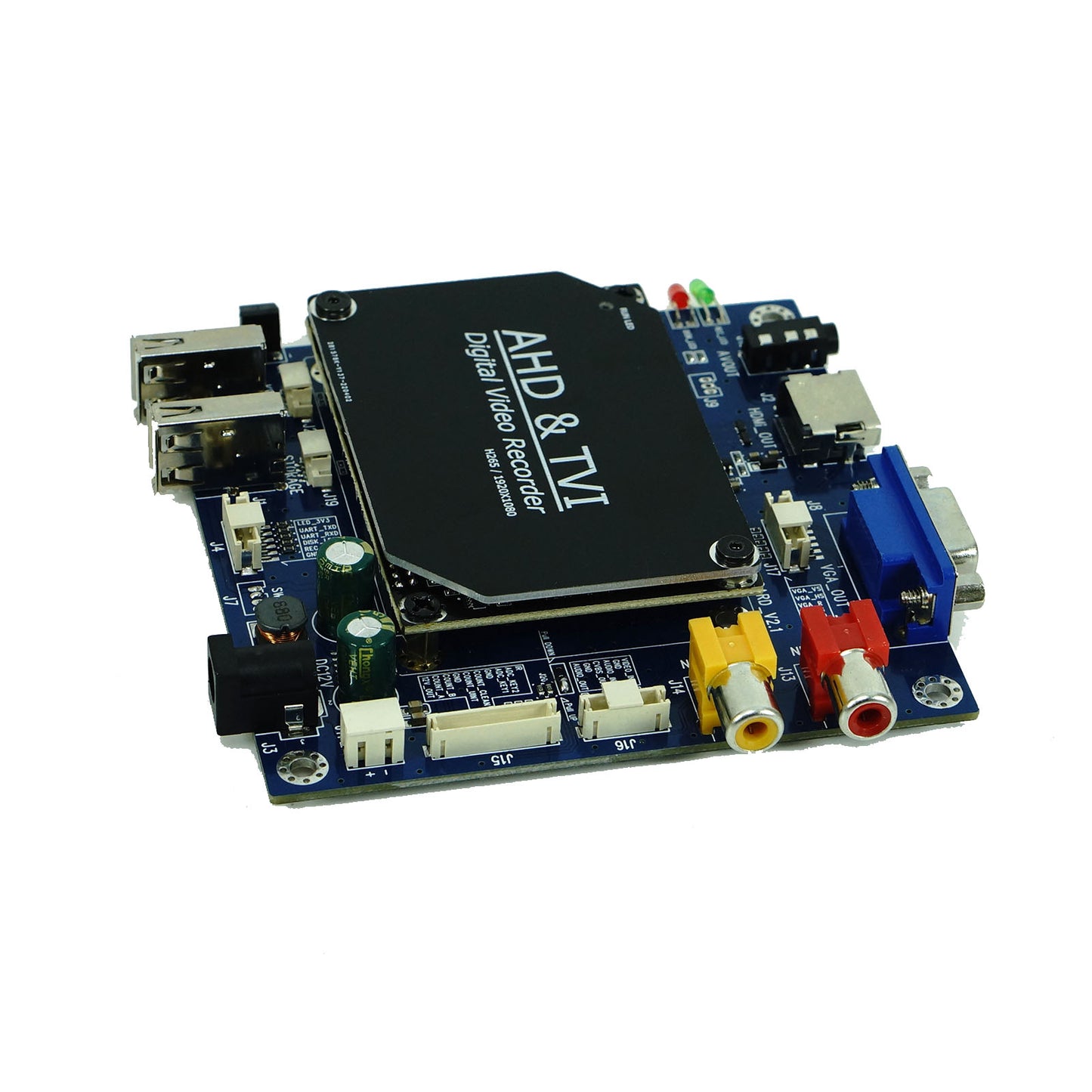

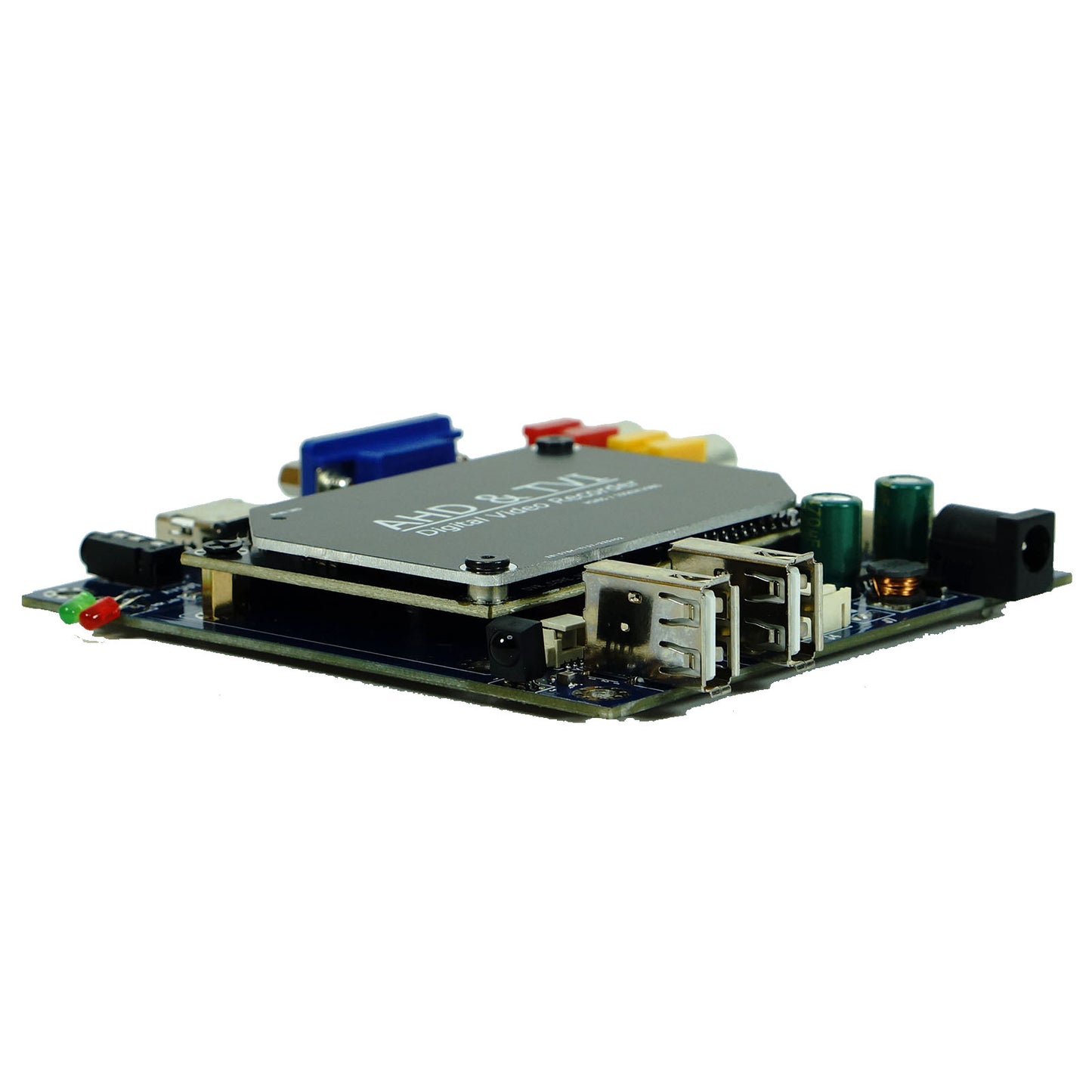

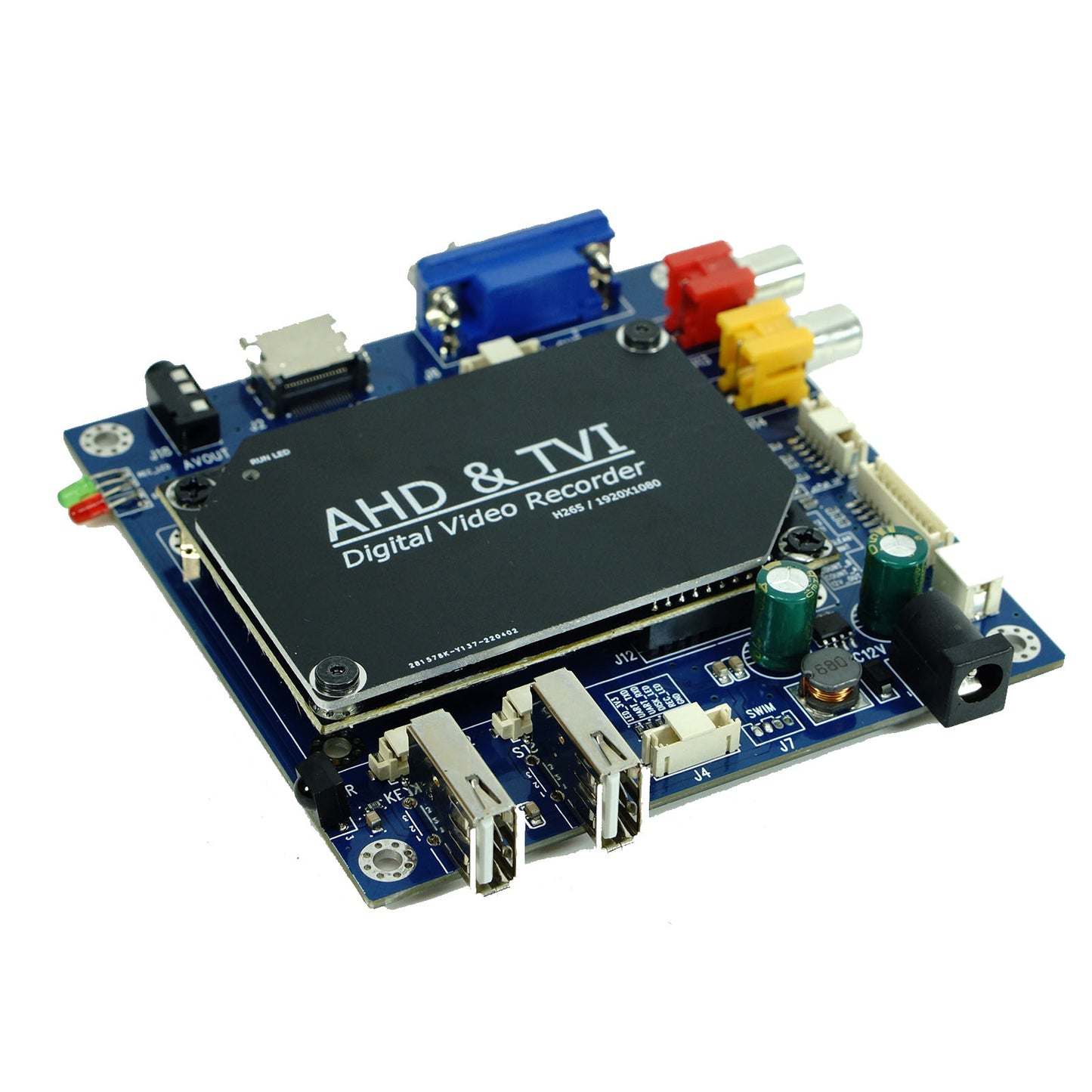

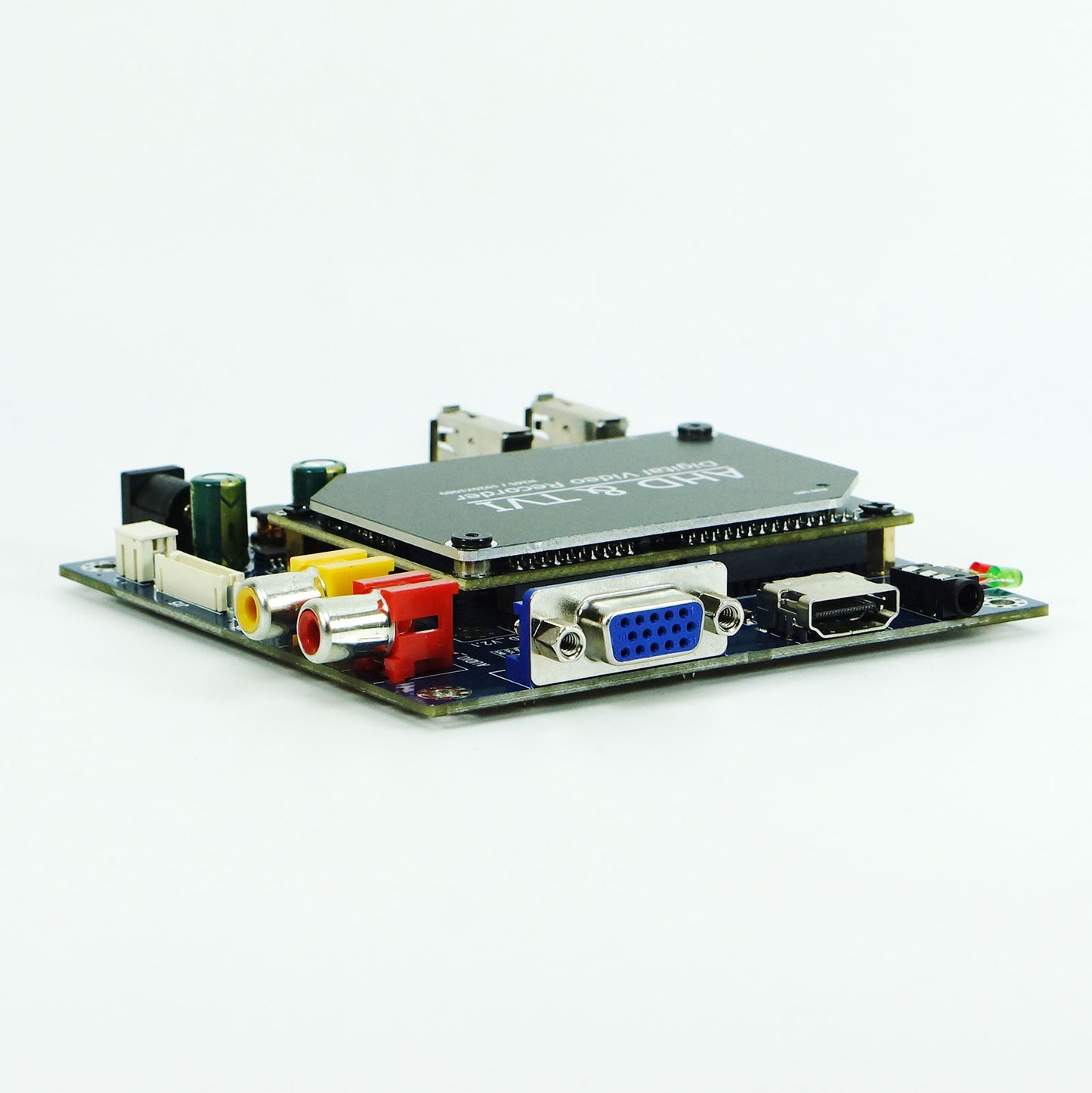

Professional Pipeline Inspection Recording System Main Board supports analog CVBS/ AHD 1080P/720P video input

OVERVIEW

underground pipeline detection OSD character overlay scheme 1CH DVR module board security equipment camera real-time recording

Parameter function introduction

1. General Introduction This board is a professional video recording of pipeline inspection. Supports high-definition AHD camera, 720P 1080P, camera input, and analog CVBS camera, supports OSD character overlay, directly connected to the USB keyboard, can input text, can also support counter character overlay, support U disk storage, support high-definition display output (HDMI VGA) and CVBS output.
Product Main Features
• Embedded operating system, assuring reliability and system integrity.
• H264 High Performance video compression.
• USB keyboard text input
• Counter OSD Overlay
• USB disk storage
• VGA HDMI CVBS Output
• AHD 720P 1080P and CVBS camera input
• Audio and Video Playback Video And Audio
• H264 High Performance video compression, real time recording (1080P 30FPS)for each channel Frame. rate adjustable for each channel
• G711 Audio format , Sampling rate 8khz.
• Support 1 channel real time 1080P video and 1 channel audio recording.
• Local video and audio real time playback.
