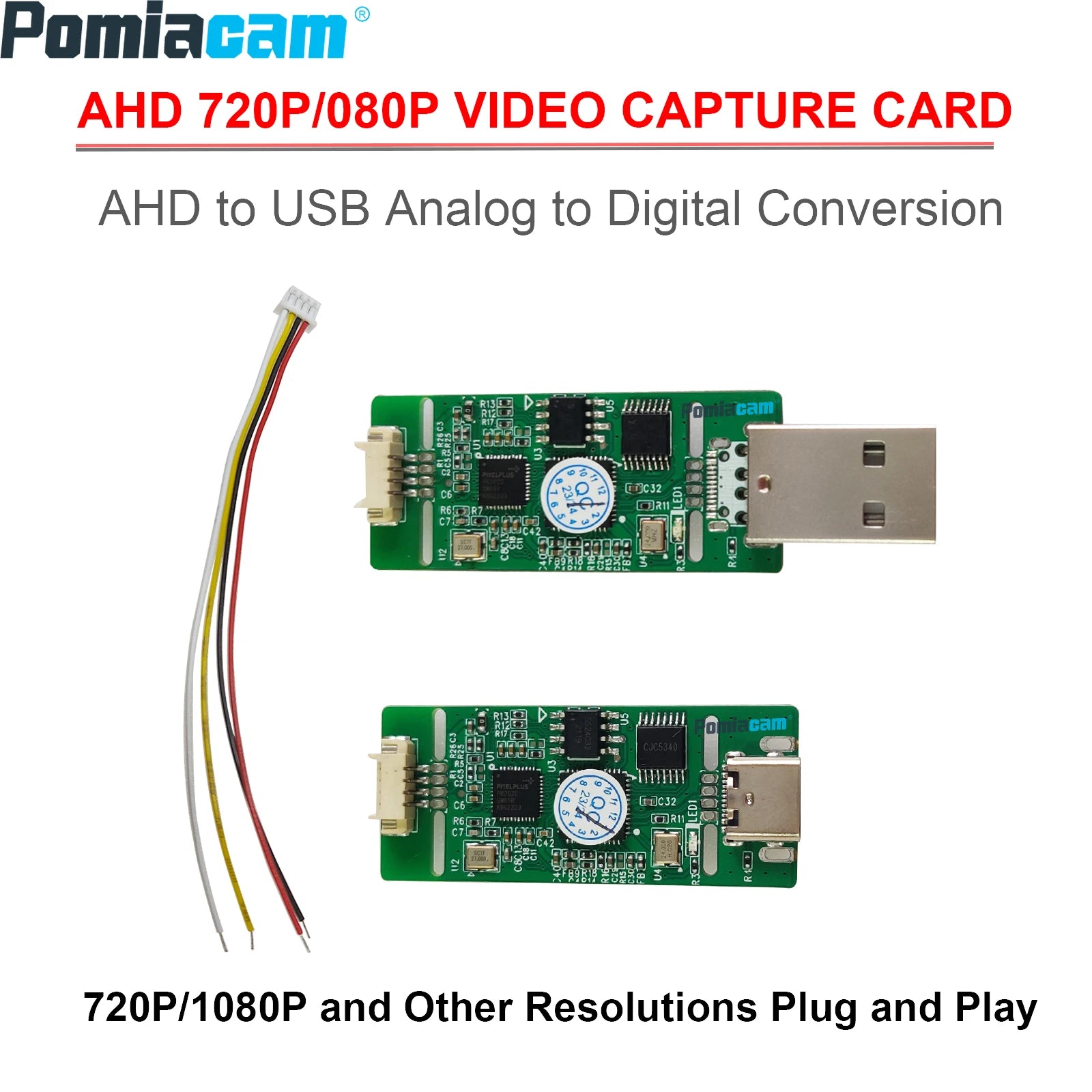

AHD to USB capture Analog signal to digital USB camera module AHD to Type-c module UVC free drive for Android free plug and play



Factory direct sales Bulk Order Support customization

Instruction manual



Product Description.

This product supports AHD video signal and audio input

(automatically compatible with PAL and NTSC 720P and 1080P resolution).

1. Through the USB interface output to the computer cell phone audio and video capture devices

2. Compliance with UVC / UAC specifications of the audio and video capture module

3.Compatible with Windows system linux system, Android, MacOS is a plug-and-play, USB drive-free HD video capture tool!

Function Description.

1.AHD video signal and audio signal converted to USB signal

2. Through the computer, laptop, cell phone and other devices to complete the capture and recording of audio and video signals.

3. Compatible with OBS, POTPLAYER, AMCAP, VLC and other computer capture software and USB camera cell phone capture software.

Instructions for use:

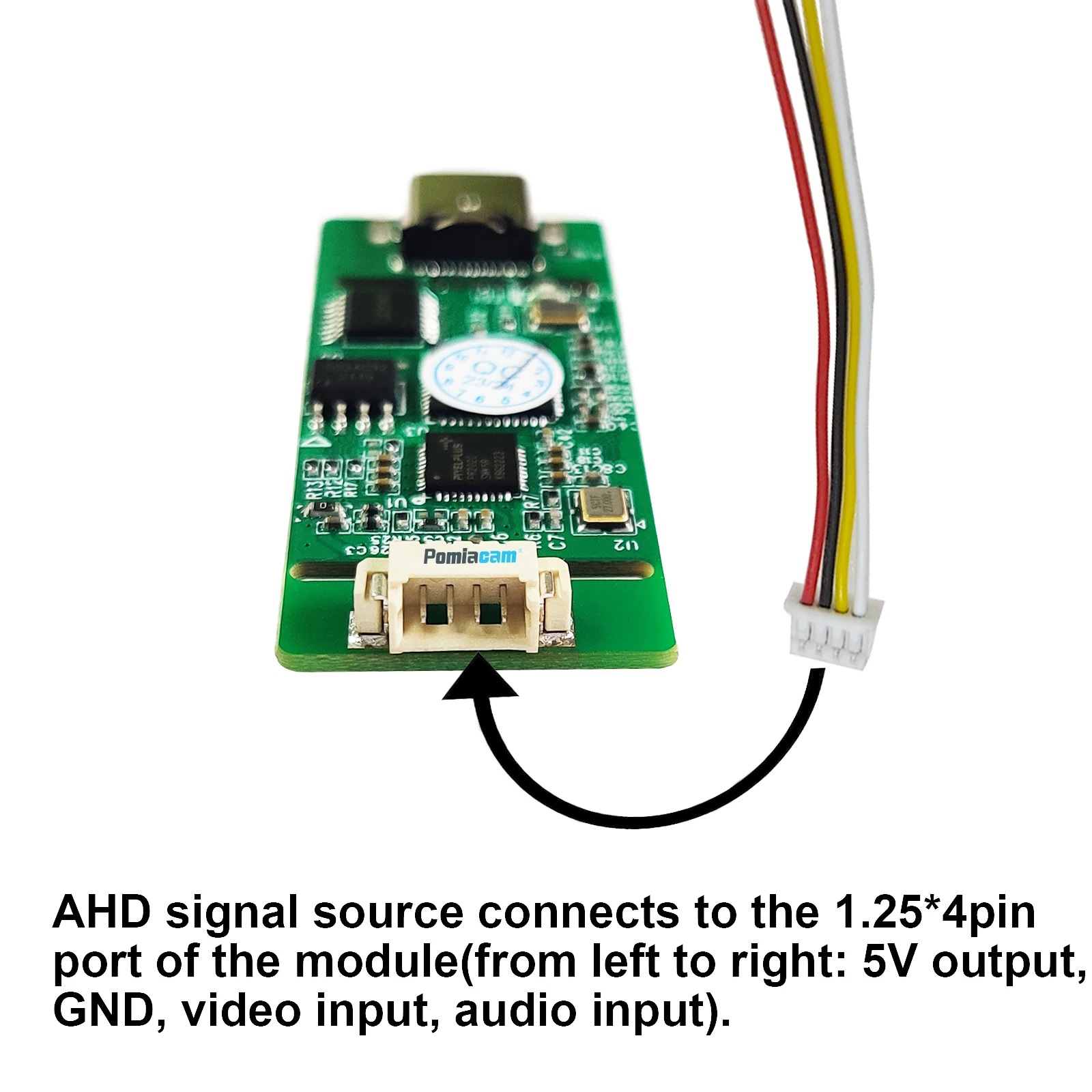

1.AHD signal source connects to the 1.25*4pin port of the module (from left to right: 5V output, GND, video input, audio input).

2. The USB port or TYPE-C port of the module is connected to the computer, cell phone, tablet, etc.

3. Open the capture software on the computer or cell phone to display the screen.

Product parameters: 1.25mm*4pin terminal block

Input signal: AHD 720P/1080P signal (compatible with PAL and NTSC)

Output interface: USB TYPE-C

Output format: MJPEG YUV422

Video output resolution and frame rate:

In MJPEG format: 1920*1080 (30 frames), 1280*720 (60 frames), 800*600, 720*576, 720*480, 640*480, 480*320, 320*240

In YUY2 format: up to 1920*1080(5 frames),1280*720 (10 frames),720*576 (25 frames), 720*480 (30 frames), 640*480, 480*320, 320*240

Audio output: 48KHZ stereo

Audio and video protocol: standard UVC/UAC

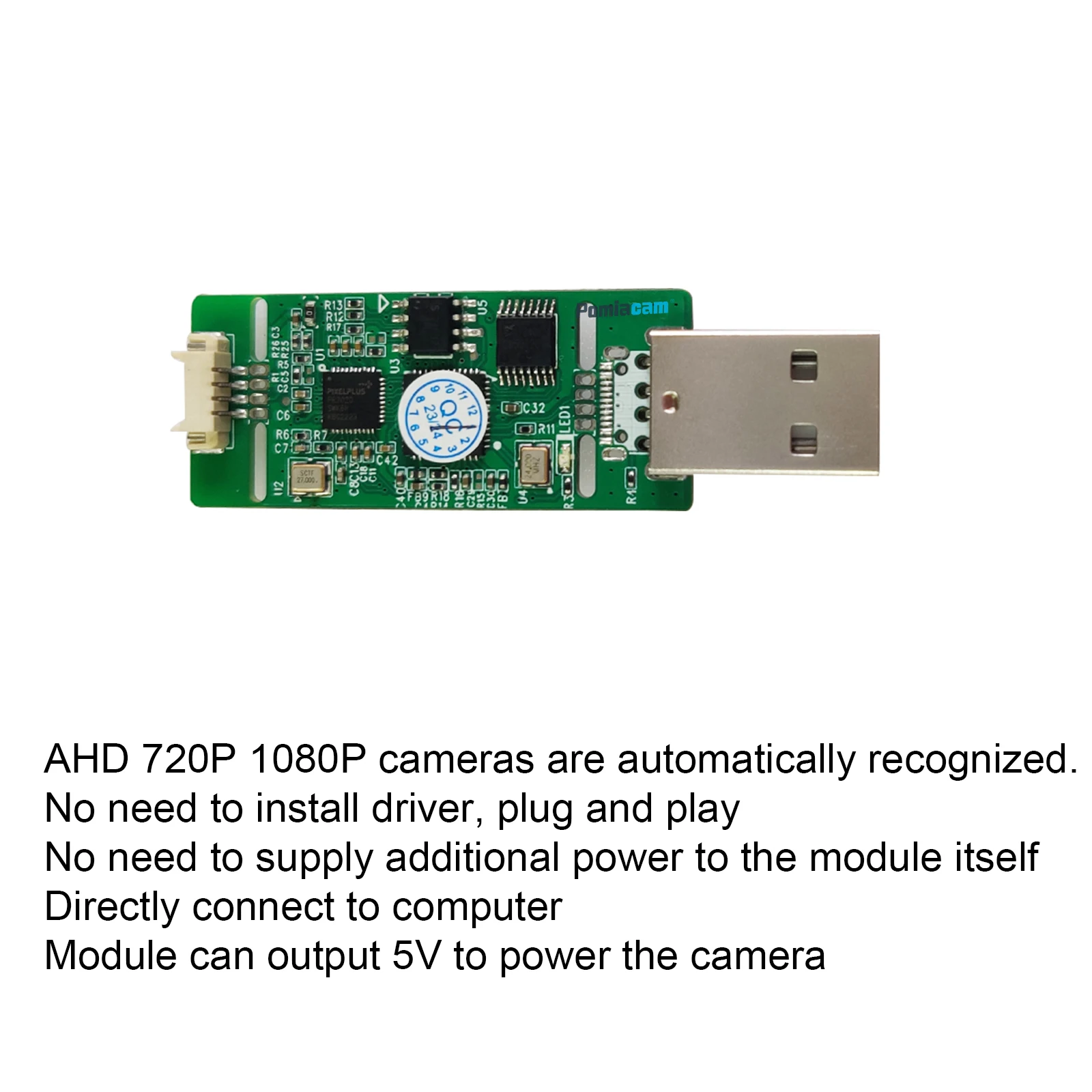

Driver: free installation driver, plug and play

Operating system support: Microsoft Windows/Linux/Android/MACOS

Common acquisition software: OBS/Potplayer (Windows)

Product power consumption: <3Wat

Product size: 1.9*4.5cm

Product weight: 10g

2024 New AHD to USB Type-c Capture 720P/1080P output MJPEG YUY2 Drive-free plug and play

In MJPEG format: 1920*1080 (30 frames), 1280*720 (60 frames), 800*600, 720*576, 720*480, 640*480, 480*320, 320*240

In YUY2 format: up to 1920*1080(5 frames),1280*720 (10 frames),720*576 (25 frames), 720*480 (30 frames), 640*480, 480*320, 320*240

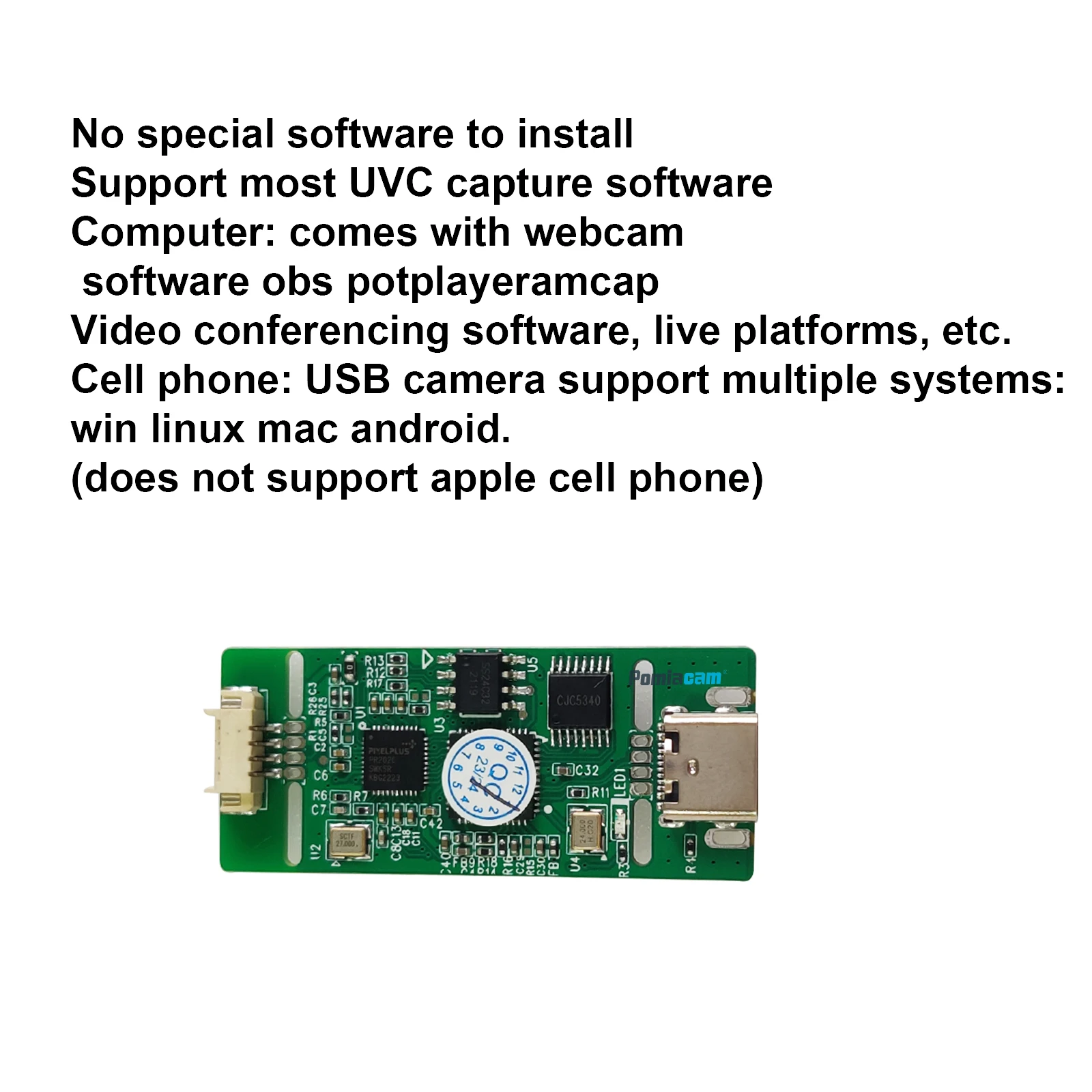

No special software to install

Support most UVC capture software

Computer: comes with webcam software obs potplayeramcap

Video conferencing software, live platforms, etc.

Cell phone: USB camera support multiple systems:

win linux mac android.

(does not support apple cell phone)

From left to right: 5V output GND video input

Audio input socket spacing 1.25mm*4pin (factory wiring)

lf you don't need this seat, you can also break thissection and directly weld the wire

How to use mobile phone.

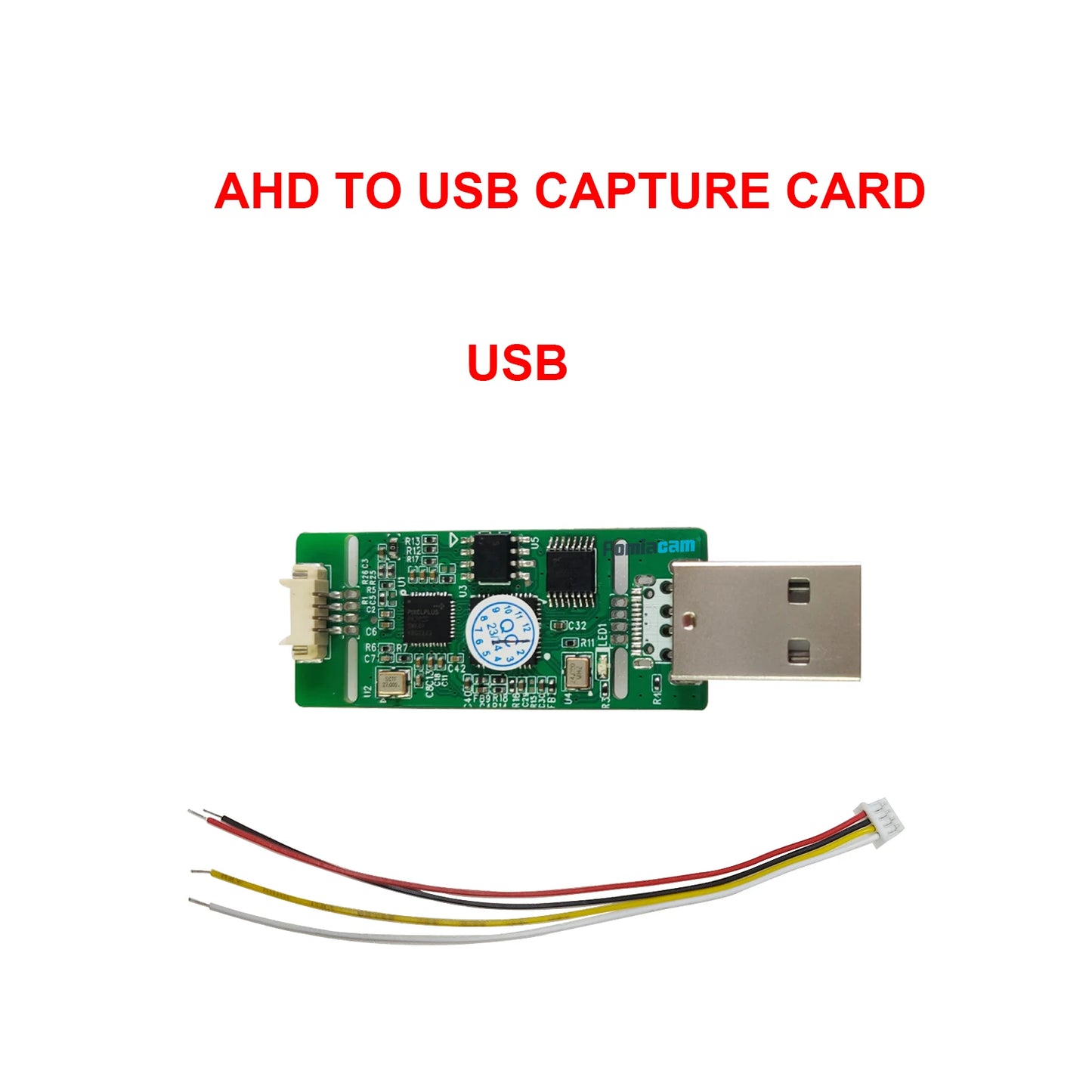

USB: can be directly plugged into the computer USB port

TYPE-C

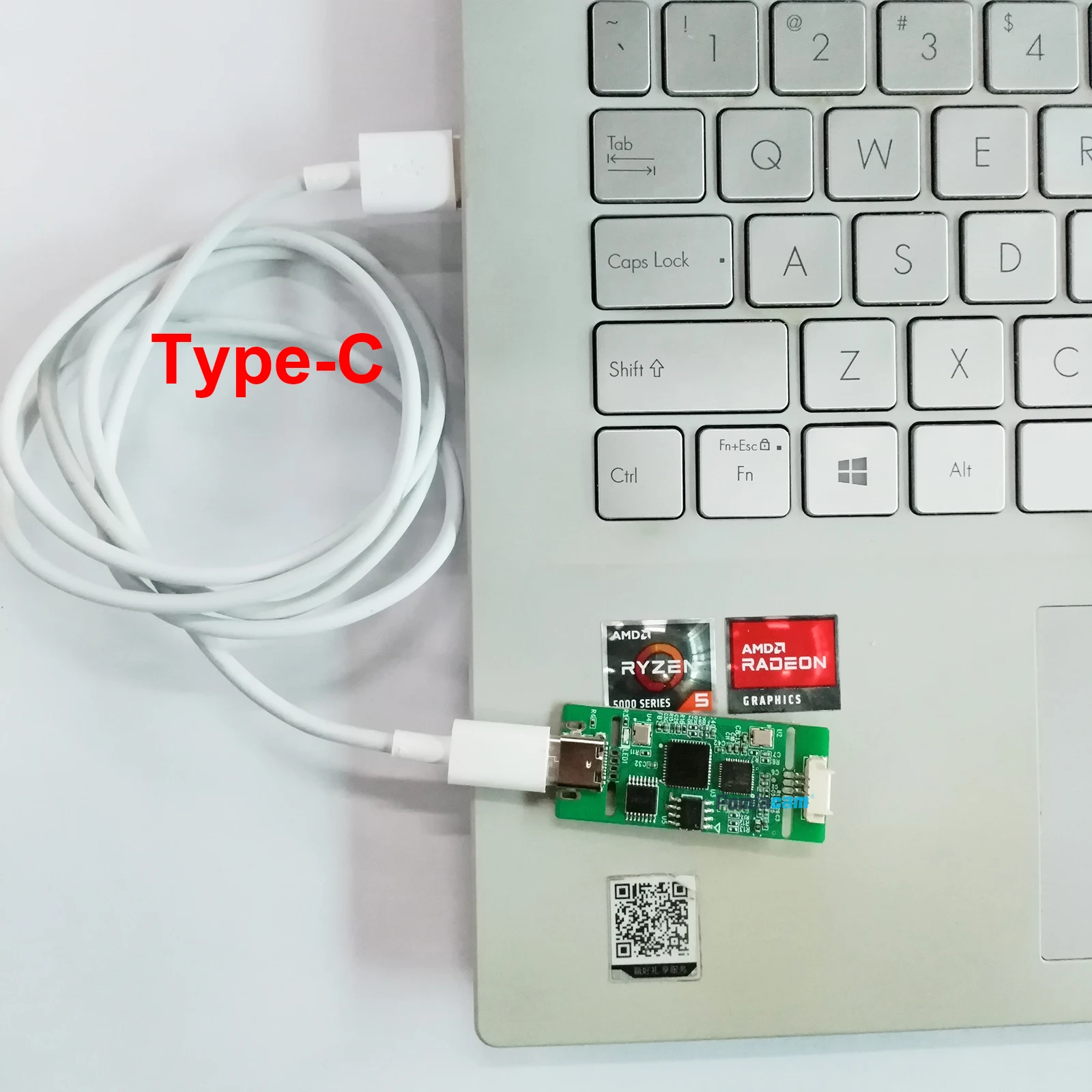

1. Can be connected to the computer through the cell phone data cable

2. Can be directly connected to a cell phone tablet or cell phone cable + OTG converter head through the two Type-c cable

How to use the computer side

Input: Camera connected to the capture card

Output: 1. type-c board directly with a cell phone cable one end to the capture card and the other end to the computer USB port, the USB board will be directly plugged into the computer's USB port, the USB board will be directly plugged into the computer's USB port.

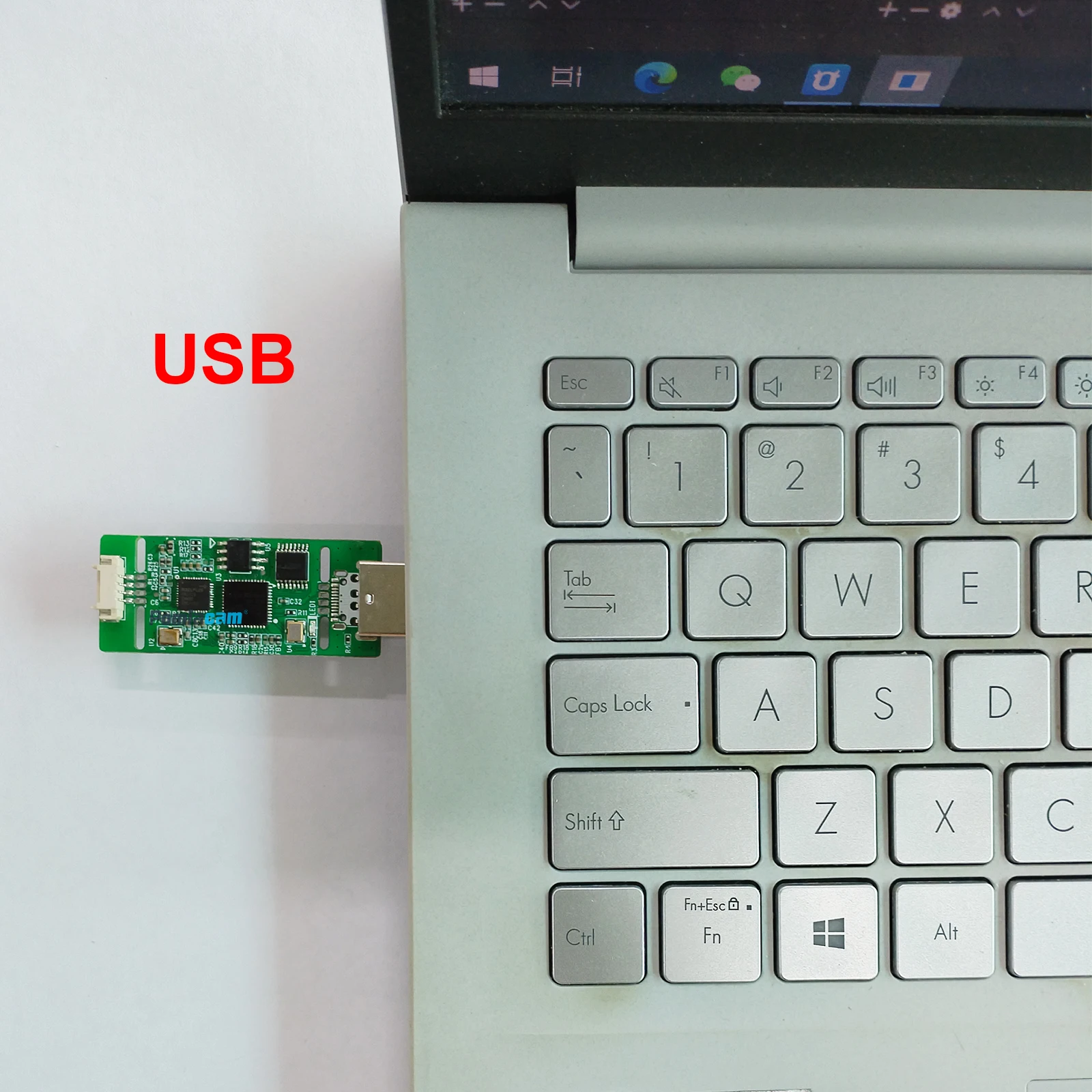

2.USB board is directly inserted into the USB port of the computer.

3.Open any capture software on the computer side to display the screen.
