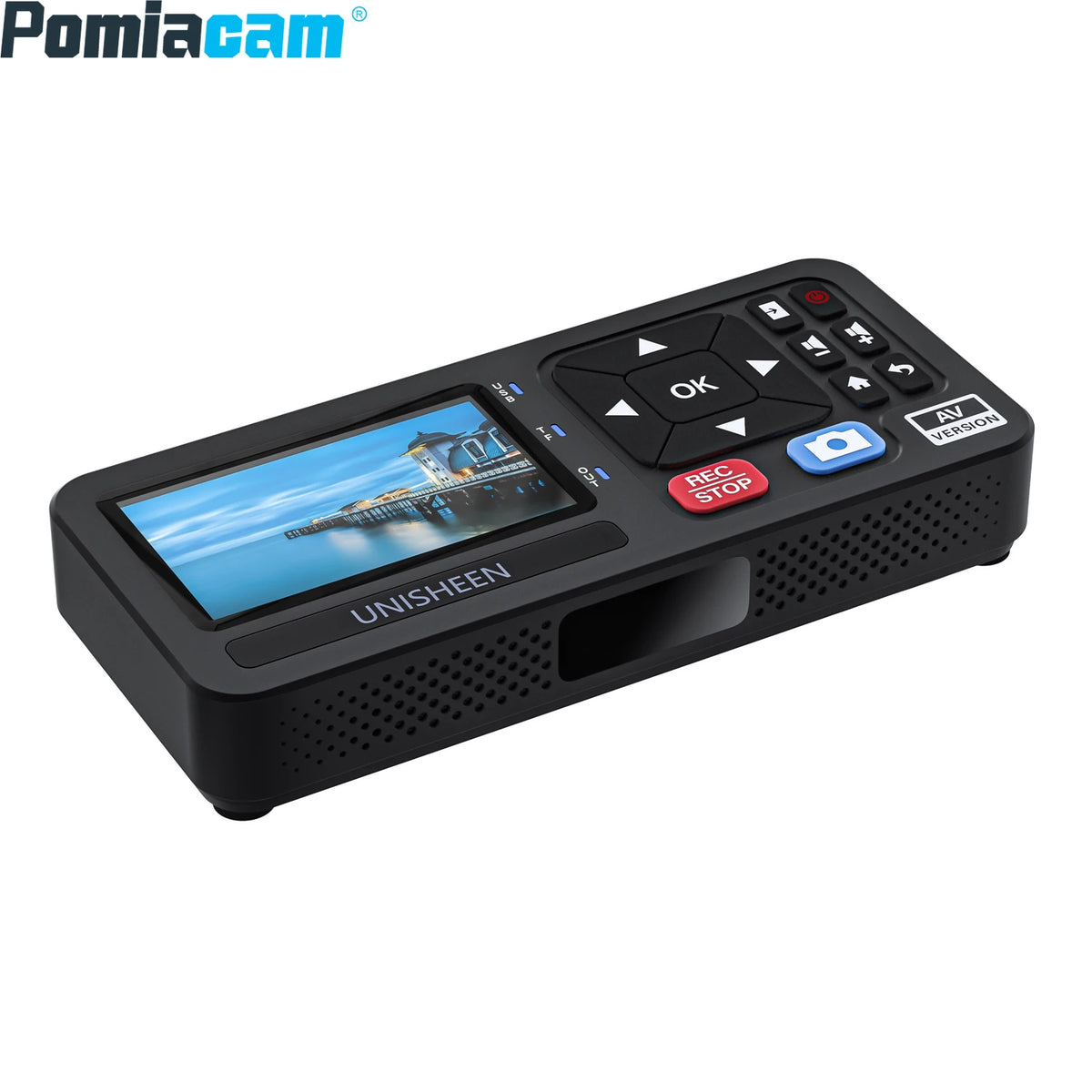

Home » UR230A Audio Video Capture Recorder CVBS/S-Video To MP4 1080P Recording USB/TF Storage VHS Converter Professional HD Capture Box
AUTOPVISION

UR230A Audio Video Capture Recorder CVBS/S-Video To MP4 1080P Recording USB/TF Storage VHS Converter Professional HD Capture Box

In stock
SKU: WZ-EU Adapter
€103,70
Sale €203,49 €103,70
Color

Use this text to encourage communication or promote sharing on social networks.

You can also add links

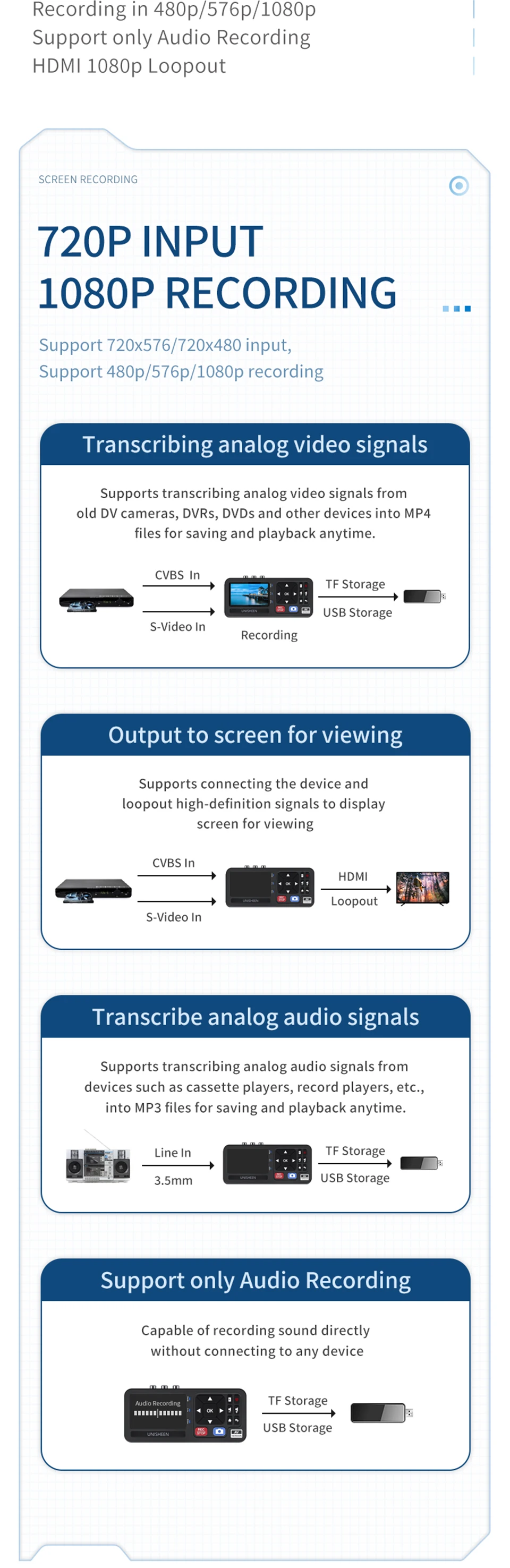

As a video recorder , it easily records audio and video from any devices which has CVBS / S-Video output ( RCA/AV output), such as a  VCR,VHS,Camcorder,RCA,DVD player...


It saves the videos onto the flash USB drives (up to 512 G ) or TF cards (up to 512 G) in MP4 format .The size of each file is 4G(FAT32) or 16G (NTFS/exFAT)
Q1,Which capture system is NTSC or Pal-M
A: UR230A supports NTSC and PAL .

Q2, Can this product runs on battery? or do i have to plug it in all the time?
The device is powered by a 5V 1A supply.it supports 7x 24 Hours to work.The battery-powered version will be available soon

Q3,which is what includes and you could bill me
A: Included in Package:

UR230A: 1 piece
RCA Cable 1.2M: 1 piece
3.5mm Audio Cable 1.2M: 1 piece
USB Cable 0.8M: 1 piece
USB Power Adapter 5V1A: 1 piece
Remote Control: 1 piece
Manual: 1 piece

Q4, How many fps the device saves video
A: Select AUTO or 1080P recording
NTSC: Input is 480i60, record 480P30 or 1920x1080P30, and HDMI OUT outputs 1920x1080P60.
PAL: Input is 576i50, record 576P25 or 1920x1080P25, and HDMI OUT outputs 1920x1080P50

Q5,The final video files are 720 or 1080?
A: Select AUTO or 1080P recording
NTSC: Input is 480i60, record 480P30 or 1920x1080P30, and HDMI OUT outputs 1920x1080P60.
PAL: Input is 576i50, record 576P25 or 1920x1080P25, and HDMI OUT outputs 1920x1080P50

Q6,Is the voltage for power supply dual? Does its supports Singapore voltage.?
A: The device is powered by a 5V 1A supply.
The USB power supply is wide-voltage, supporting 100-240V.
We offer three types of power supplies: US, EU and UK standard. Please select the appropriate one when placing your order.

Q7,This device records video from VHS ???
A: The UR230A features composite video and S-video interfaces, capable of capturing devices such as VHS、VCRs and cameras etc

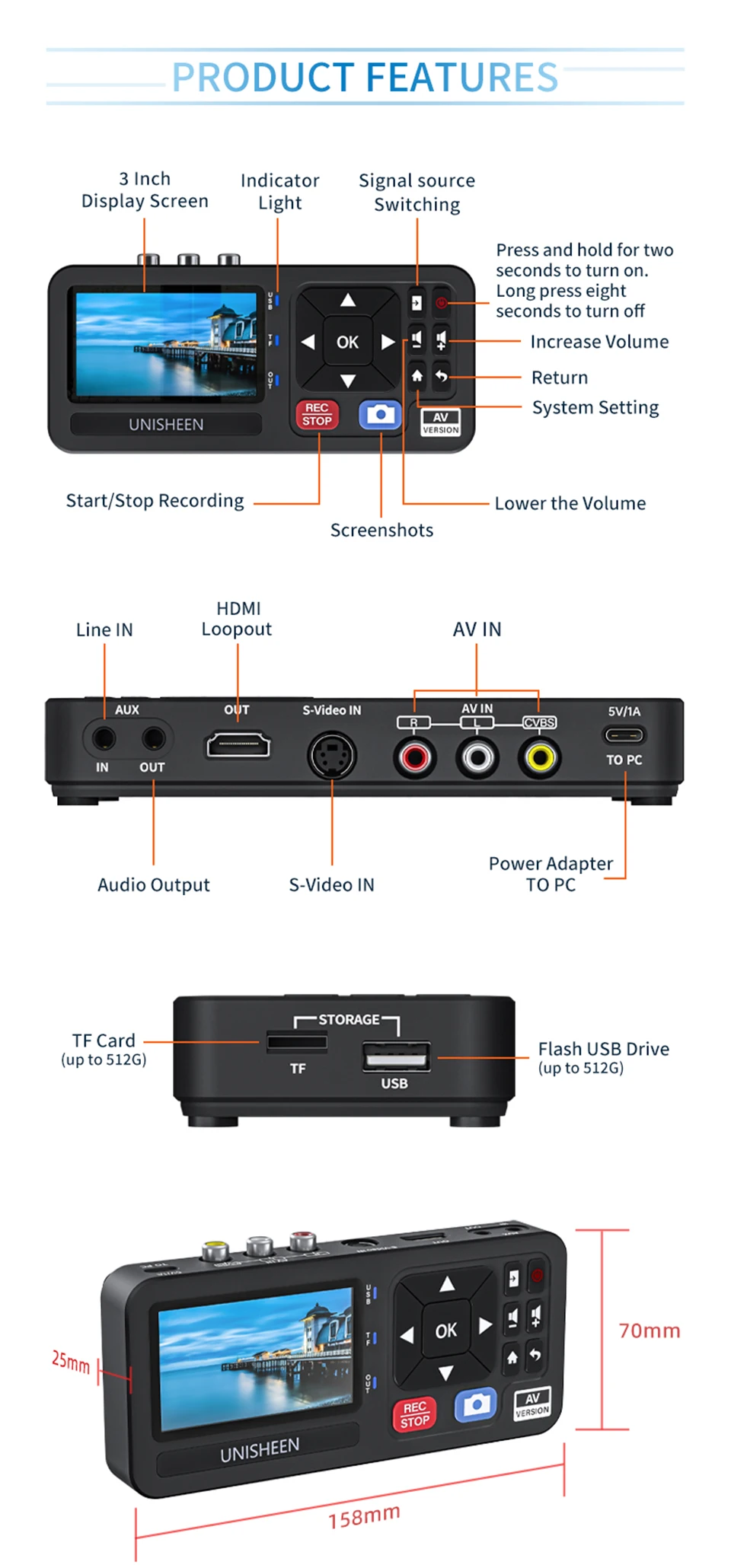

Feature

* CVBS/Svideo Input* HDMI 1080p Loopout* Recording in 480p/576/1080p* Support only Audio Recording* Support Snapshot in Recording* Schedule Recording* Flash USB Drive or TF Storage* Support Play Back* Remote Control





Specification

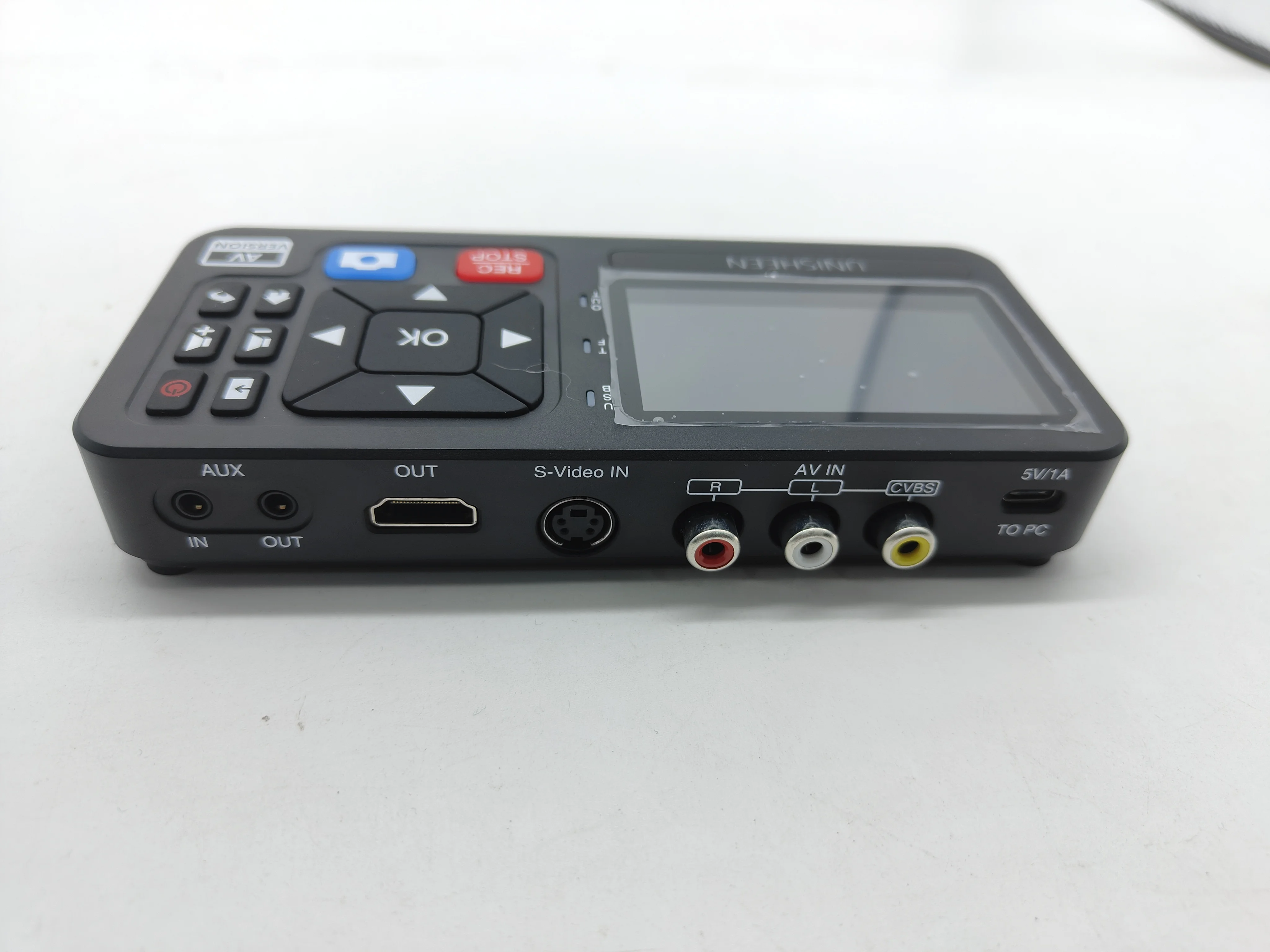

Video Input(Switchable)

1x CVBS/Svideo

Video Resolution

720x576/720x480 NTSC/PAL

Loop Out

1xHDMI(1080p)

Audio

RCA Audio/External Line In

Display Screen

3 Inch

Remote Control

Yes

Screeshot in Recording

Yes

Only Audio Recording

Yes

Playback

Yes

Alone Mode



Record Resolution

1080p/576p/480p

Storage Device

Flash USB Drive(up to 512G),TF(up to 512G)

Storage File System

FAT32/exFAT/NTFS

Record Format

MP4(H.264 Codec)

Video Bitrate

4/6/8MB

Audio Bitrate

128/196/320KB

Size of Each File

4G(FAT32) or 16G(NTFS/exFAT)

Schedule Recording

Support

Computer Mode



Record Resolution

1080p/576p/480p

Compatible UVC/UAC

Yes

Comatible System

Win10/Mac OS/Linux

Compatibility with 3rd application software

OBS/Xsplit/Wirecast/FLME/QuickTime/VLC/Potplayer/Skype

Attached Software

UXplayer(separately to buy)

General



Language

English/Japanese/Italian

Dimension(W×L×H)

158x70x25mm

Package(W×L×H)

186x145x78mm

Net/Gross Weight

0.18kg/0.6kg

Temperature

0-55(Work),-20-80(Storage)

Power/Consumption

5V DC 1.0A/3w

Included in Package



UR230A

1pcs

RCA Cable 1.2M

1pcs

3.5mm Audio Cable 1.2M

1pcs

USB Cable 0.8M

1pcs

USB Power Adapter 5V1A

1pcs

Remote Control

1pcs

Manual

1pcs
