NEW 4.3 Inch Four in One Wrist HD CCTV tester Monitor IV7W 5MP AHD , 4MP CVI , TVI CVBS Camera Tester 1080P 960P 720P PTZ UTP Cable Tester 12V Output

Item No.: IV7W
Display: 4.3" TFT Color LCD
Image Resolution:480x272
Video in: Video in x 1
Power out: DC power out x 1;(AHD+TVI+CVBS camera of power source/Max electric currency 800mA)
System Format: PAL/NTSC
Status Indicator: 4 LED,Power IND=Red Charging IND=Red,1
INQUIRY
Buy At Amazon Buy At eBay
Description

CCTV Camera Tester

NEW - IV7W : Support CVBS + AHD (5MP) + TVI (5MP) + CVI (4MP) Camera and CCD cameraTester

 This CCTV tester not supported Digital Multimeter

Fratures :

Terminal and DC power supply , palm size , easy to carry and operate .

Through DC power out enables user to inspect ; crrect camera or confirm installation . it is conveniet for video equipment that helps communication and discussion with clients during installation peocess .

With ADSL Detection Function .



IV7W :

Model: IV7W

New version 4.3" HD camera tester CCTV camera tester monitor 12V 1A output Support 5MP/4MP Hikvision Coaxial Testing,Support 5MP/4MP AHD Camera Testing.

Support TVI Cameras :5MP, 4MP, 3MP, 1080P , 720P;

Support AHD Cameras :5MP, 4MP, 3MP, 1080P , 720P;

Support CVI Cameras :1080P, 720P;

Analog cameras=video testing updated model



1. video tester
  • Video System: NTSC/PAL Automatically recognize
  • Video level: 1VPP
  • Display screen: 4.3 inch LCD RGB 480 * 272 (QVGA) resolution, 64K color
  • Screen adjustment: Video display brightness, contrast, color saturation adjustable,
  • LCD backlight brightness adjustable
  • Video input / output: 1 channel BNC Video IN
2. HD AHD ,TVI Test
  • SD signal Format: NTSC,PAL
  • Video signal: HD AHD,TVI,CVI,CVBS
  • Resolution : D1,720P,960p,1080P,3MP,4MP,5MP
  • MAX Support 5MP,4MP AHD 20FPS ; 5MP 4MP TVI 20FPS
  • Signal Level: 1Vpp
3. 12V power output
  • Power output:
    • Temporary power output 12V 1A D
    •  USBX1  5V1A output
4. Audio test
  • Audio test: Input audio signal, and played on the internal speaker
5. Power supply
  • External power supply: DC 5V(2A)

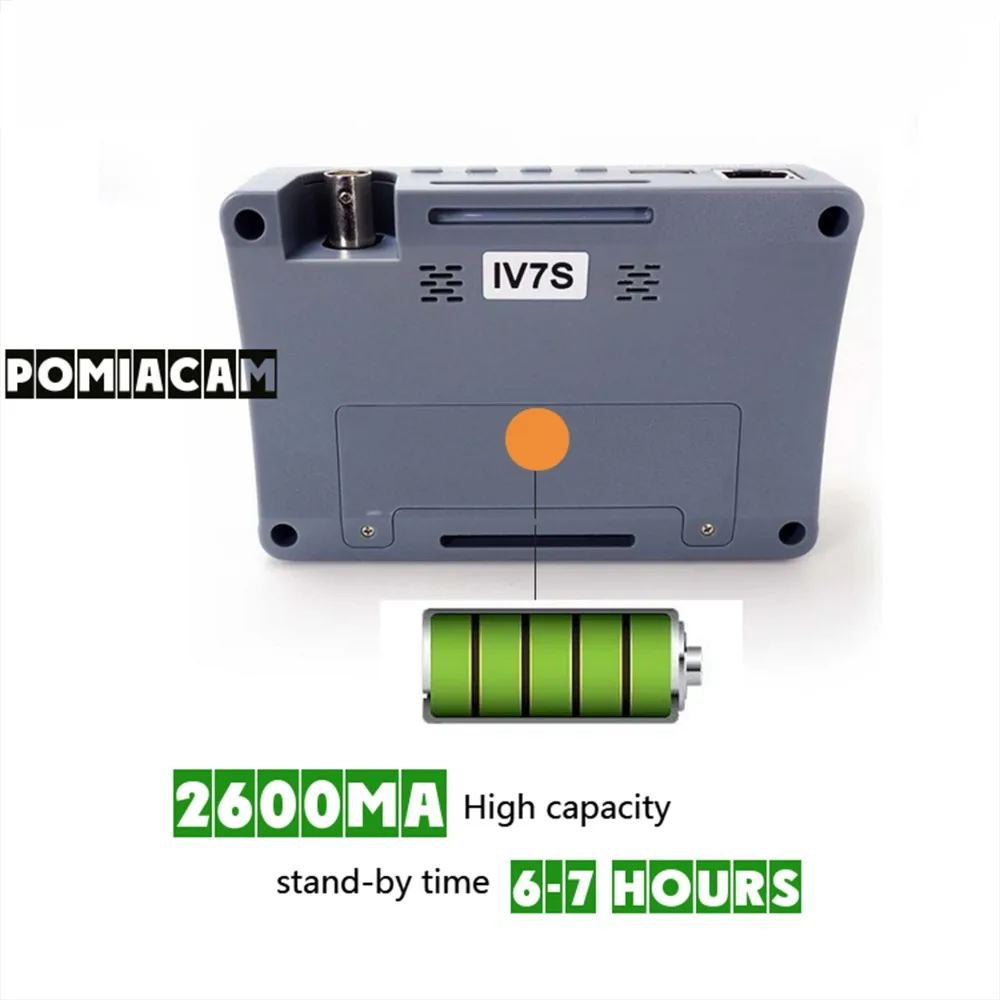

  • Battery-powered: Built-in 3.7V li-polymer battery, Capacity 2600mAh
  • Charge: Charge time 3-4 hours Battery power time 8 hours
  • Power saving features: Low power consumption, automatic power off, Real-time display of battery level
6. System settings
  • Language settings:  English
  • Auto power off: Disable / 5-60 minutes
7.Cable test
  • cable test: Test any two or more wire cable Display connect sequence and remote number
  • LED Light: 1*35lm LED light
  • Working environment and Specifications: -20℃---+70℃/30%-90%R

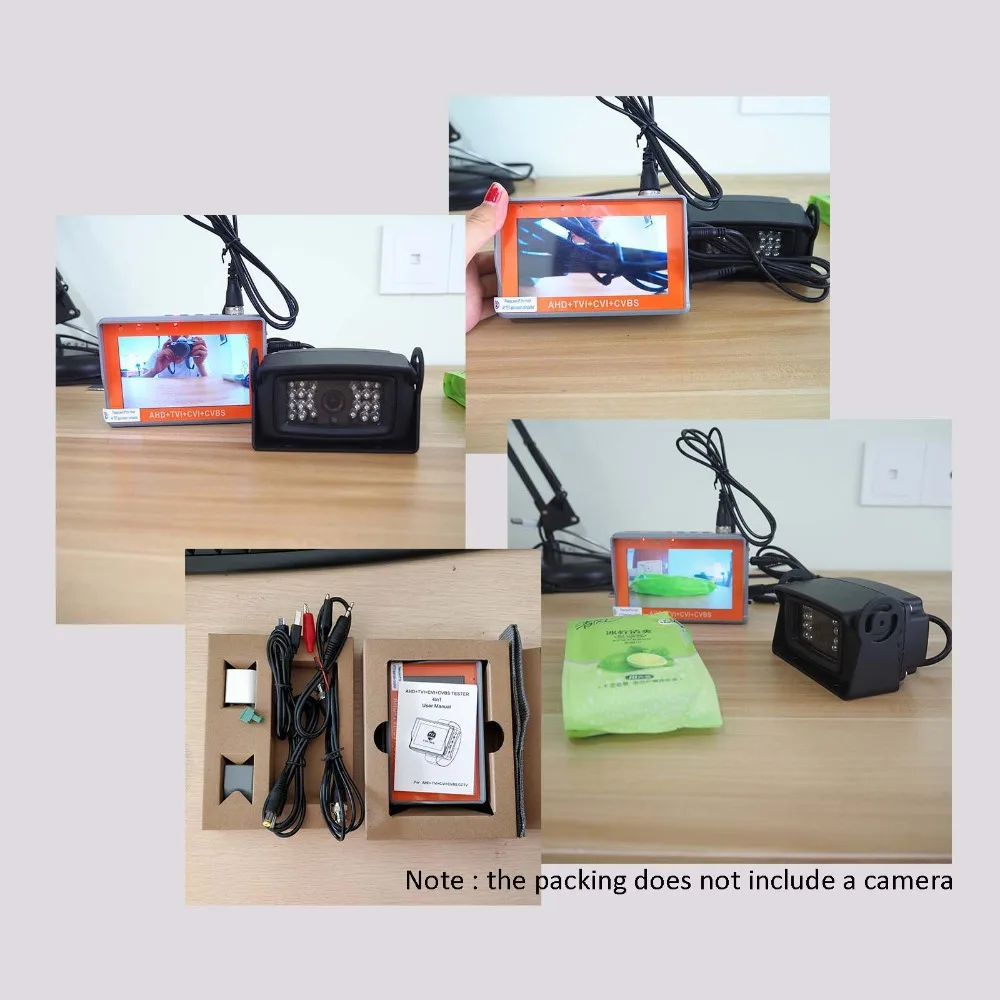

Packing List:

  • HD AHD+TVI+CVI+CVBS CCTV Tester x 1
  • AC/DC Adapter x 1
  • Power Output Cable x1
  • Transformer x 1
  • A/V Cable x 1
  • Video Cable x 1
  • Date Cable x 1
  • Wristbands x 1
